Your Rugged Motherboard. Evolved.

Motherboard Labeled

Thrives in extreme environments

Multi-layer construction for unstoppable ruggedness.

Product Section

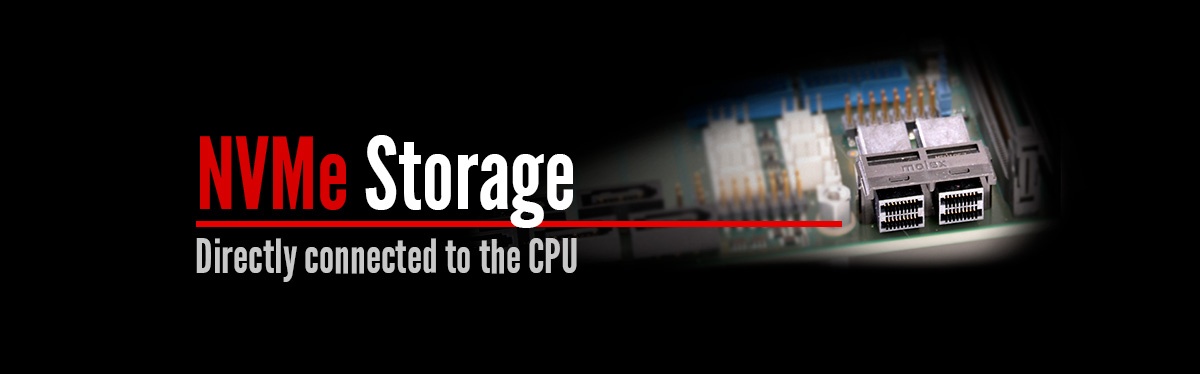

Very fast, very direct path to the processors and RAM. Load your OS and other time-critical files on these NVMe drives for high throughput and low latency.

Product Section - 2

Configure with confidence

Let's Customize Together

Take a closer look

 Motherboard 1440

Inspect the Tech Specs

Model Number SSP8268
Board Type SSI Motherboard
CPU

Intel® Xeon® Scalable Performance (Skylake-SP) Processors

  • Dual Socket P (LGA3647)
  • CPU TDP up to 125W each
Chipset Intel® C622
Memory 12 x DDR4-2400/2666 ECC Registered DIMM slots supporting standard & load-reduced memory
PCIe Slot Configuration

7 x PCI Express x16 Mechanical Slots

  • 3x PCIe Gen3 x16
  • 4x PCIe Gen3 x8
On-Board Configuration
  • 2x U.2 Ports supporting x4 Gen3 ports each (SFF-8639)
  • 6x SATA/600
  • 2x 20-pin USB3.0 headers (2 ports each)
  • 6x PWM Fan Headers
Rear I/O 5 USB 3.0
7x Gigabit Ethernet (10/100/1000) - 1 shared with Out of Bounds Management
1x i350 Quad Controller
1x i350 Dual Controller
1x i210 GbE (shared)
Line Out, Line In, Microphone 3.5mm Mini Audio Jacks/Realtec LALC262 Codec
1x RS232 DB9 Serial Connector
1x VGA 1920x1200@60Hz 32bpp
Trenton Systems BIOS In-house revision-controlled BIOS with customization/optimization available (contact Trenton Systems for more info)
Trenton Smart System Management  AST2500 Baseband Management Controller consisting of:
  • rKVM
  • System Monitoring
  • Out of Bounds Management
  • TPM 2.0 down on the board (no header like other motherboards!)
Environmentals Operating Temperature: 0°C - 50C°
Storage Temperature: -40°C - 70°C
Humidity: 5% - 90% Non-Condensing
Dimensions 12.0“ (L) x 13.0” (W)
30.48cm (L) x 33.02cm (W)
