ION Rugged Mini PC

Product Overview & Downloads

Tech Specs

Model Number MPC1000 (Chassis) | MTX8288 (Processor Board)
Form Factor Mini-ITX
CPU
  • Intel® Coffee Lake & Coffee Lake-R Processor
  • CPU TDP support up to 35W
Processor Gen ECC Cores/Threads Frequency Watts
2278GEL* 8th Yes 8/16 2.00 GHz 35W
i7-9700TE 9th Yes 8/8 1.80 GHz 35W
i3-9100TE 9th No 4/4 2.20 GHz 35W
i3-8100T 8th Yes 4/4 3.10 GHz 35W
i7-8700T 8th No 6/12 2.40 GHz 35W
i5-8500T 8th No 6/6 2.10 GHz 35W
*Turbo Mode disabled
Memory
  • Slots: 2x DDR4 SODIMM sockets
  • Capacity: Up to 32GB DDR4 ECC SODIMM
  • Type: 2400/2666 ECC DDR4 UDIMM
  • DIMM Sizes: 16GB, 8GB
  • Error Detection: Corrects single-bit errors and detects double-bit errors using ECC memory
Storage
  • Type(s): 1x 2.5" SSD/HDD SATA3 (6 Gbps) drive up to 15mm height; 1x M.2 NVMe x4 PCIe
  • Capacity: Up to 1TB (larger capacities available upon request)
On-Board Devices
  • Chipset: Intel C246
  • IPMI: Support for Intelligent Platform Management Interface v2
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2500 BMC
  • Network Controllers:
    • Intel i350 Gigabit Ethernet
    • Supports 1000Base-T, RJ-45 output
  • Graphics: Intel Integrated Graphics & ASPEED AST2500 BMC
  • TPM 2.0: Secure crypto-processor that helps you with actions such as generating, storing, and limiting the use of cryptographic keys

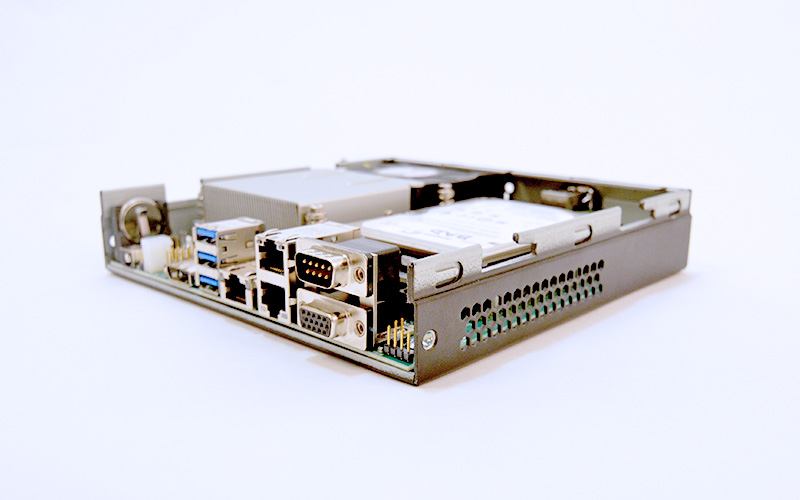

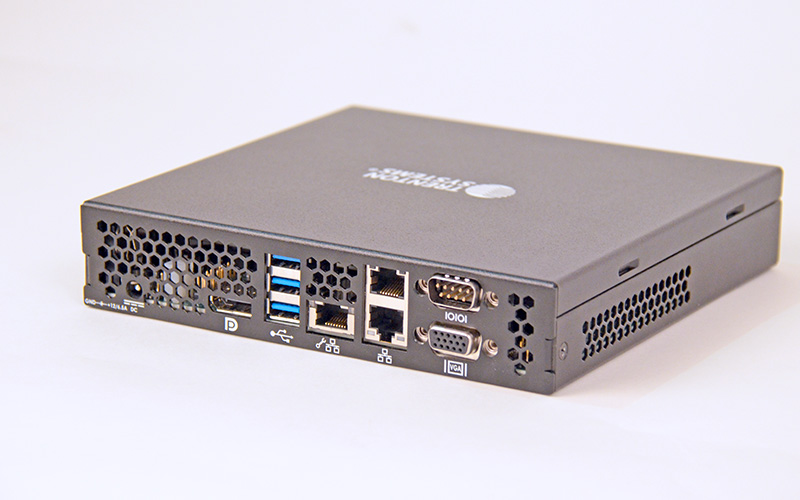

Input / Output
  • Power: 1x Power Connector
  • USB: 3x USB 3.0 Ports
  • Display:
    • 1x DisplayPort
    • 1x VGA Port
  • LAN:
    • 2x RJ-45 Gigabit Ethernet LAN ports
    • 1x RJ-45 Shared IPMI LAN port
  • Serial: 1x RS232 Serial Port

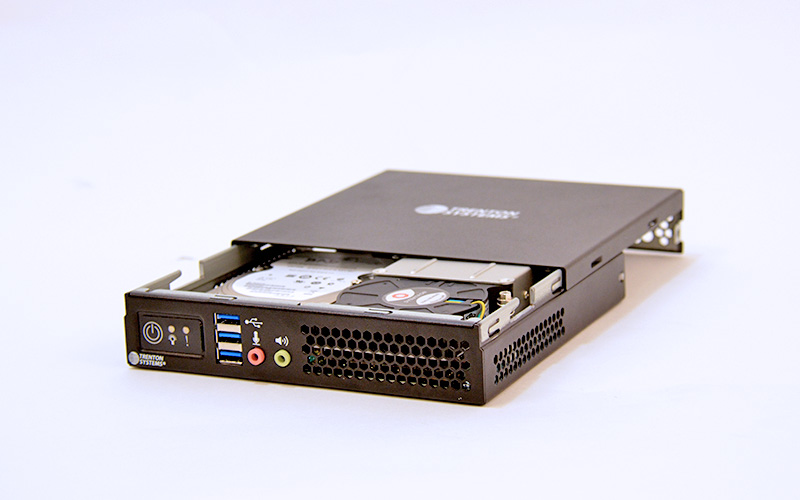

Front Panel
  • 3x USB 3.0 Ports
  • Power Button
  • Audio In/Out
  • Fault LED
System Cooling 1x PWM CPU Blower Fan; DC 12 V
Power Supply 84W Power Brick, 12 Vdc, 7A
Dimensions
  • Width: 7.0” | 17.78 cm
  • Height: 1.4” | 3.56 cm
  • Depth: 6.8” | 17.27 cm
  • Average System Weight*: 3.2 lbs. | 1.45 kg

*dependent on component selection

System BIOS
  • BIOS Type: 128 Mb SPI NOR Flash with Insyde BIOS
  • BIOS Features:
    • Plug and Play (PnP)
    • APM 1.2
    • PCI 2.2
    • ACPI 1.0 / 2.0
    • USB Keyboard Support
    • SMBIOS 2.3
    • UEFI
Management AST2500 Baseband Management Controller: rKVM, System Monitoring, Out of Band Management
Environmentals
  • Operating Temperature: 0°C - 45°C
  • Storage Temperature: -40°C - 70°C
  • Operating Humidity: 8% - 90% Non-Condensing
  • Non-operating Humidity: 5% - 95% Non-Condensing

*Preliminary numbers noted

Compliance
  • Random Vibe B, 3 Axis
  • Shock 6G +/-
  • CE certified to health, safety, and environmental protection standards for products sold within the European Economic Area
