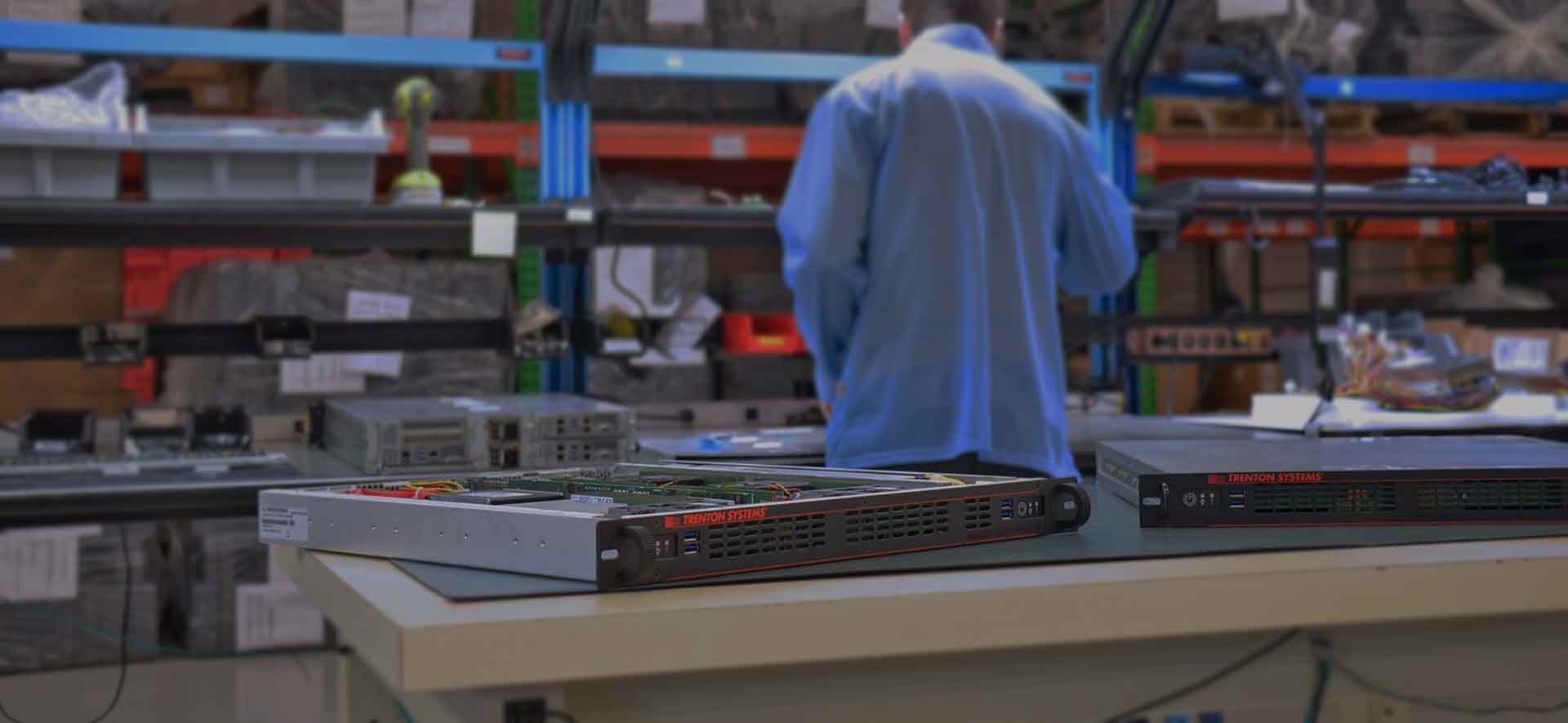

1U Rugged Workstations Hero (darker)

1U Rugged Workstations

Lightweight Yet Powerful

Two flavors that cover all your specs & reqs.

Request Pricing

Intel Inside®

Core™ or Xeon® CPUs

DDR4-2400

Dual-Channel ECC DIMMs

19"

Chassis Depth

12.5 lbs.

Fully Configured

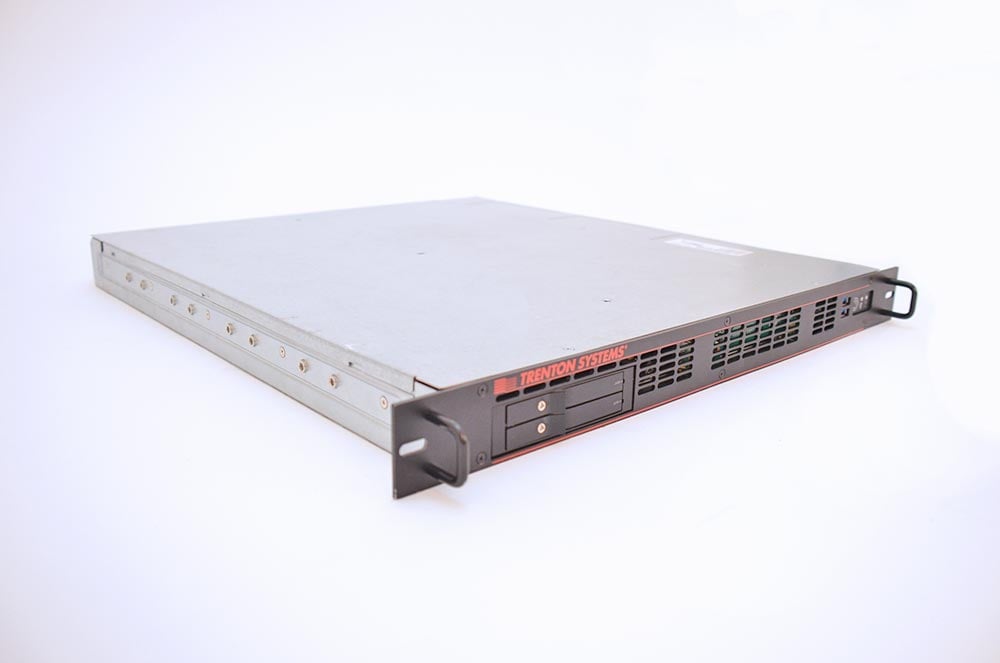

Light as a Feather

Okay, maybe not that light but we got it down to 12.5 lbs! That's SWaP-optimization at its finest. Also, it's the lightest 1U rugged workstation you'll find on the market today.

TRC1002 Front Angle

Processor Board2

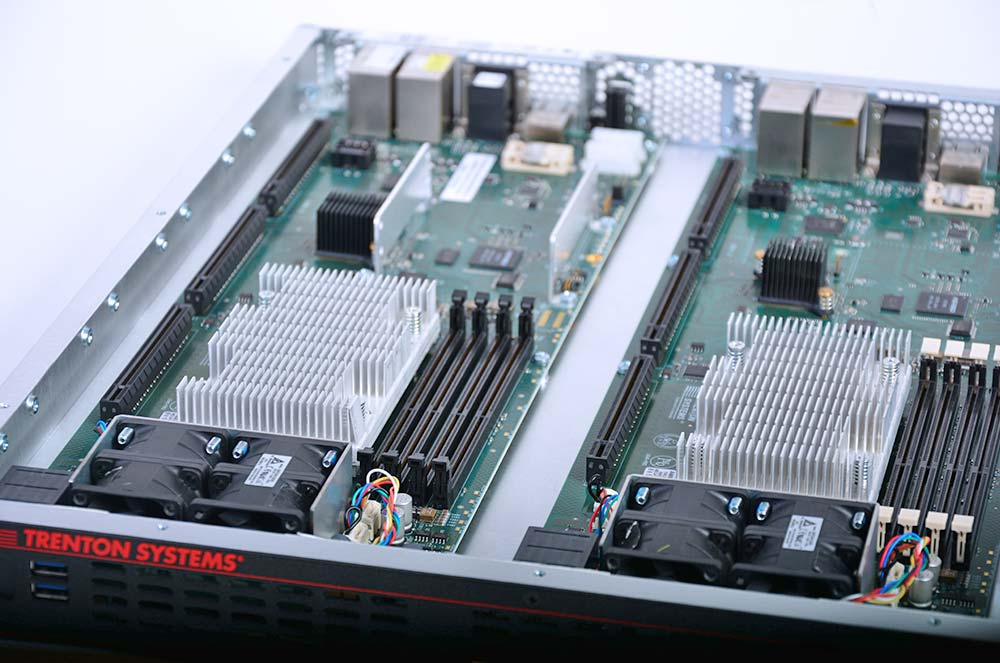

Unleash extreme performance with the 2-in-1U  rugged workstation. That's right. Two processor boards inside a short-depth, light, 1U rugged chassis. Our favorite kind of déjà vu.

Two Processor Boards in a 1U Workstation

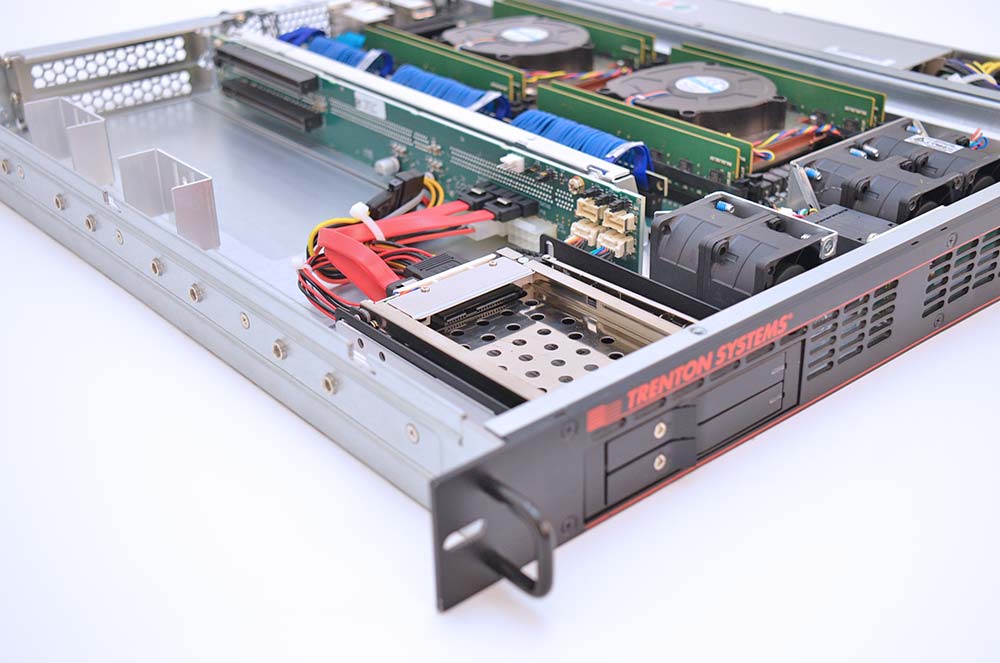

PCIe Slots & Storage

Our 1U-fits-all solution holds the same relentless CPU power but also boasts ample storage options and up to two PCIe Gen3 slots.

You've read that right. Performance, storage, option cards. Packed into a 1U rugged workstation. Boundaries excluded!

Add even more PCIe slots to your ruggedized computer with our PCIe Expansion Kit.

See Our PCIe Expansion System

MBS1002

Jack of All Trades

Mix & match our 1U rugged servers and workstations' processor boards into one system.

The perfect balance between performance and storage in a small form factor, rugged chassis.

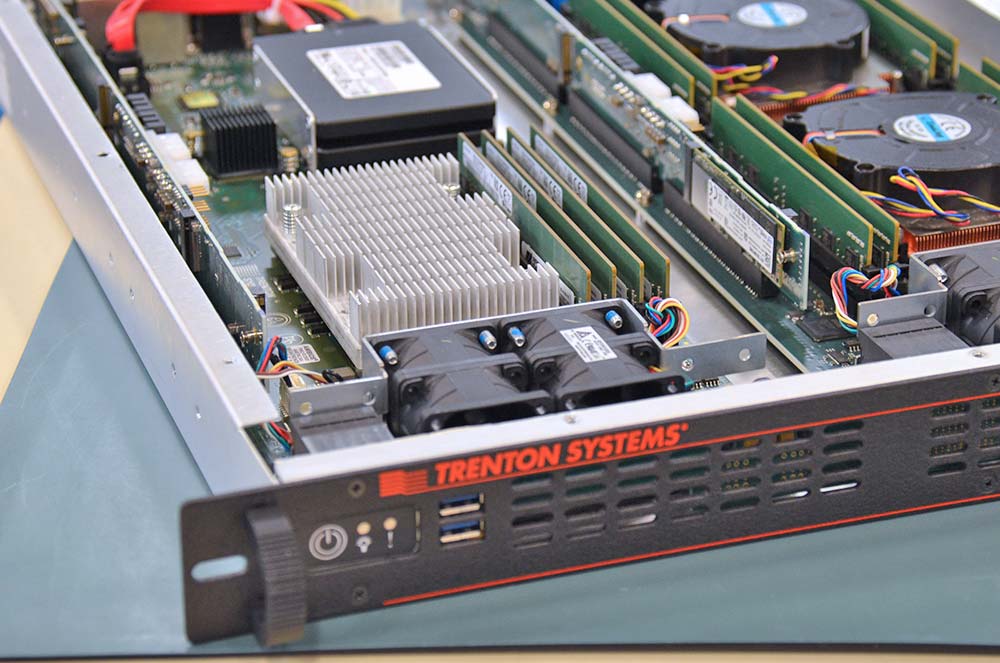

Mix & Match

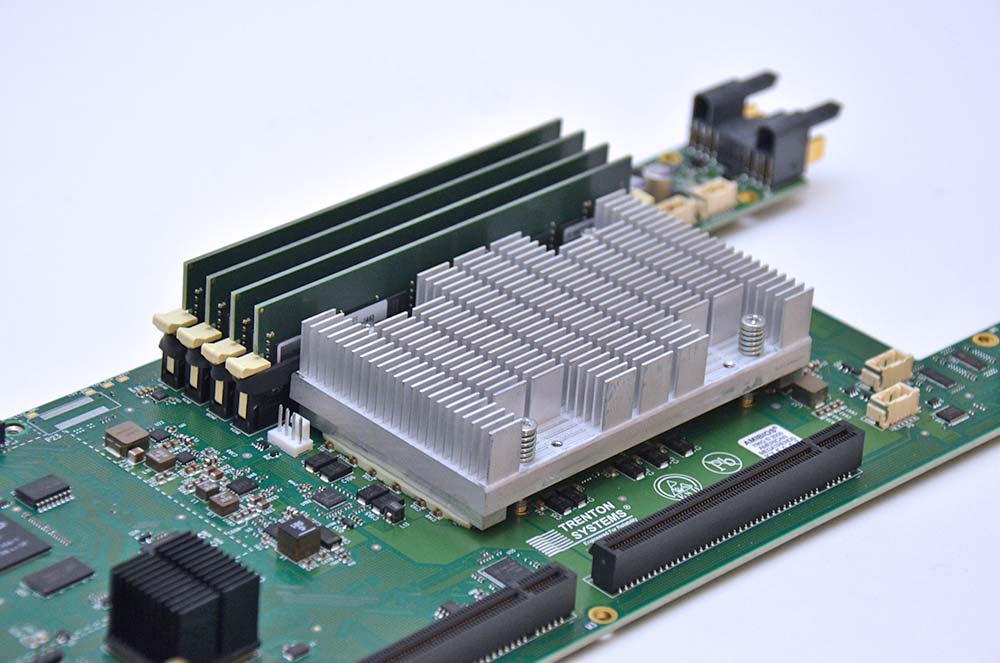

Intel® Core™ or Xeon® CPUs

Remarkable performance using 7th Gen Core™ i3, i5, i7 or Intel® Xeon® E3 v6 processors. Up to 4.2 GHz clock rate, 4 cores (8 threads), 8MB cache, and 25W - 125W TDP.

MBK8257 CPU

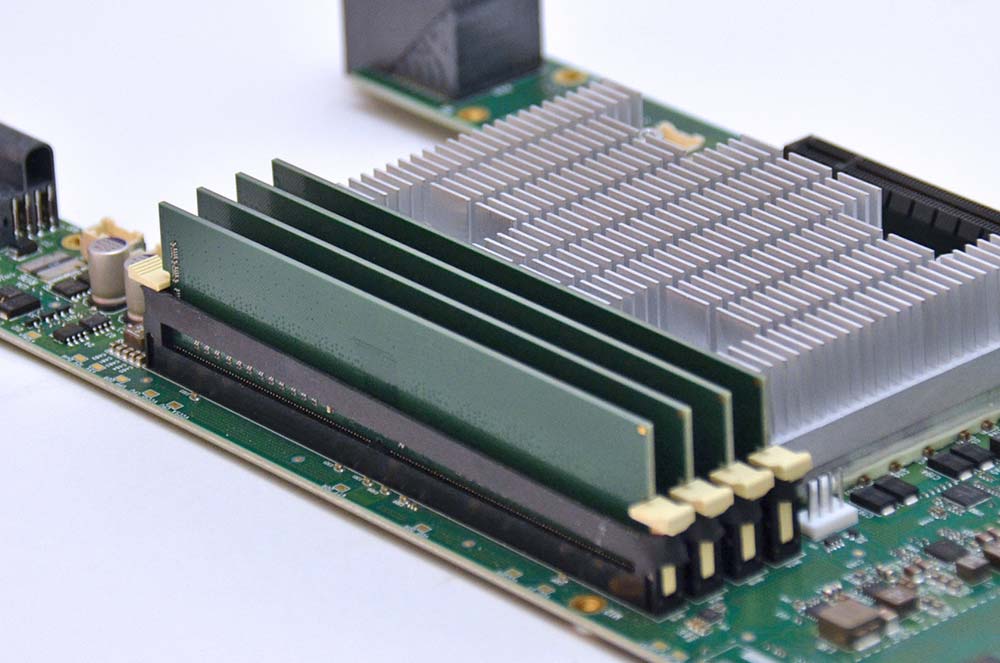

Unforgettable Memory

Maximize signal integrity with four carefully optimized ECC DIMMs across 4 channels and up to 64GB DDR4-2400 memory.

Basically the best server-class RAM in a 1U rugged workstation.

MBK8257 Memory 2

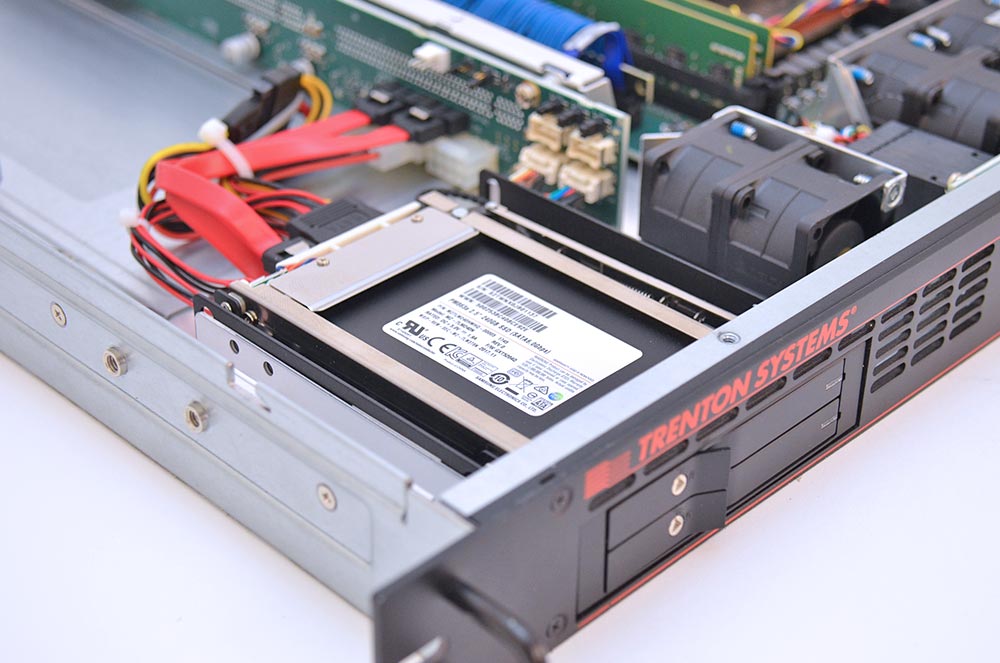

Storage SATAsfied

Exceed your storage specs with up to 2 internal SATA 6 Gb/s drives & an optional riser card carrying up to 4 M.2s per processor board.

Depending on which rugged chassis you choose, we can expand your storage needs with an additional 2 front-access/hot-swap drives.

TRC1002 Drives

PCIenabled

Two PCI Express slots enable you to run two full-height, 3/4 length option cards in a 19" deep 1U rugged chassis.

TRC1002 PCIe

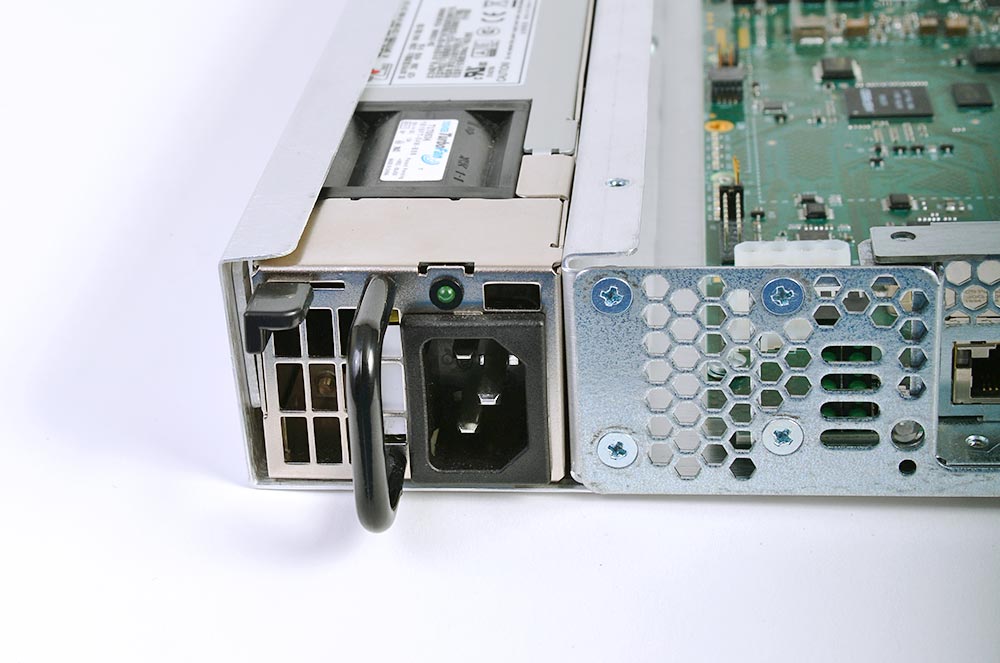

Power. Full.

1200W Removable Power Supply offers versatility and plenty of juice to run your most demanding applications.

TRC1001 Rear IO 2

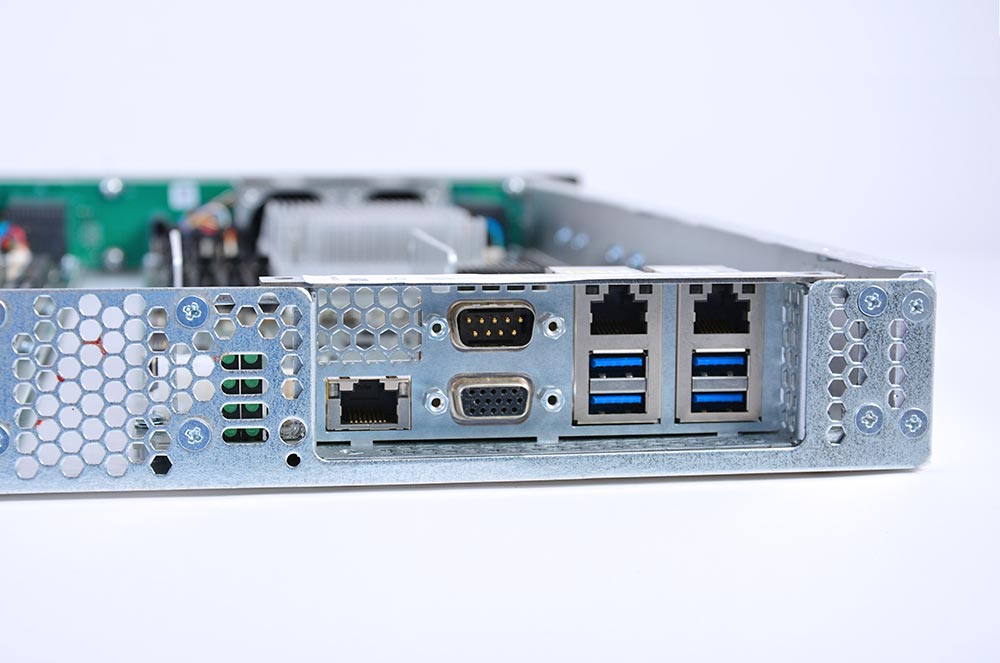

I/Options

  • Up to 4 - 1GbE Ports (3 ports on rear as standard)
    • Baseband Management routed to front & rear interfaces
  • Up to 4 SATA/600 Ports with RAID
  • 6 - USB 3.1 Gen 1 Ports (4 rear + 2 front)
  • 1 - RS-232 Serial Port
  • 1 - VGA Port

Standard I/O interface can be customized to fit your specific program or application.

TRC1001 Rear IO

Configure Your Rugged 1U Workstation

Tell us what you need

Components & Downloads

Processor Boards CPU Memory Storage
MBK8257 7th Gen Intel® Core™ i3, i5, i7 or Intel® Xeon® E3 v6 Up to 64GB DDR4-2400 across 4 ECC DIMMs (2 Channels) Up to two internal SATA 6 Gb/s drives & up to four optional M.2 drives
MSL8256 Dual Intel® Xeon® Scalable Performance Up to 1.5TB DDR4-2933 across 8 ECC RDIMMs (6 channels) Up to four optional M.2 drives

Rugged Chassis Power Supply Drives & PCIe Slots Size (W x H x D)
TRC1001
H
olds 2 processor boards
1200W Removable All drives provided by the processor boards 19" x 1.75" x 19"
48.3 cm x 4.5 cm x 48.3 cm
TRC1002 1200W Removable One 3.5" drive bay holding two front-access/hot-swap SATA 6 Gb/s drives and up to 2 PCIe Gen3 Slots 19" x 1.75" x 19"
48.cm x 4.cm x 48.cm

PCIe Expansion Kit Description
PED8234 Add up to 18 PCIe slots per x16 slot in any system with either a 1m or 3m cable.
