3U, 4U, or 5U Expansion Chassis.

Revolutionary design that let's you expand your system's PCIe slots

Start with 18 PCIe slots then keep expanding

Built-to-order system configuration flexibility that allows you to determine the number of slots and height of the chassis.


Let Us Customize This Chassis For You

Speak To An Engineer
TTX5100 Top Open.png

Wider system bandwidths & lower latencies

Built-to-order 3U, 4U, or 5U chassis with up to 18 PCIe slots at the target system allows a flexible, general purpose system solution for high-end blockchain technology, data gathering, data storage, video processing and graphics in government and defense, industrial automation, and test & measurement applications.

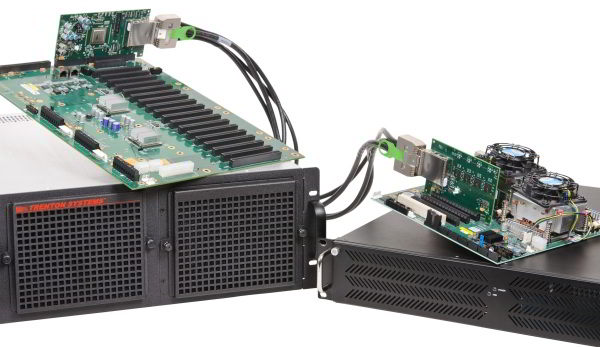

The PEU8039 x16 PCIe host card and the PED8044 PICMG 1.3 target card allows you to expand your computer effectively adding more PCIe slots.

The 4U and 5U options allow room above your GPU cards for the 8-pin aux power to be plugged in.

Customize this rugged expansion chassis with our wide array of standard internal components.

Speak To An Engineer

military computer

Size

3U height 20" (50.8 cm) deep, 4U height 16.5" (41.9 cm) deep, or 5U height 19.5" (49.53) deep
military rackmount chassis

Additional Slots

Up to 18 additional PCIe slots in a 5U or up to 12 additional PCIe slots in a 3U or 4U
military chassis

Power

1200W redudant in 5U or 860W fixed in 3U-4U
military computers

Options

Flexible hold down bar for the SHB/SBCs and the option cards for added security in high vibration environments
  • TTX3100 Front.png
  • TTX3100 Rear.png
  • TTX4102 Front.png
  • TTX4102 Rear.png
  • TTX5100 Front.png
  • TTX5100 Rear.png


Variety is the spice of life

Not all specs are created equal, this is why Trenton Systems offers variations to our products to meet your specific needs.

If these versions don't meet your specific need, simply tell us your requirements then let our engineers design a standard product just for you!

Let's Customize

TTX3100

Chassis Depth 20" 50.8 cm

12Additional PCIe Slots per chassis

3 3.5" Drive Bays

1 860W PSU

Tech Specs & Downloads

TTX4102

Chassis Depth 20" 50.8 cm

12additional PCIe slots per chassis (room for aux power on GPU cards)

4 3.5" Drive Bays

Up to 860W PSU

Tech Specs & Downloads

TTX5100

Chassis Depth 18" 45.7 cm

18additional PCIe slots per chassis (room for aux power on GPU cards)

2 3.5" Drive Bays

Up to 1200W PSU

Tech Specs & Downloads

How many PCIe Slots do you need?
