PCIe Backplanes

Designed to provide the most PCIe slots on the market while battling the harshest conditions. Each PCIe backplane is built to operate at peak performance on sea, land, air, or space across mission-critical applications and programs worldwide. Stress-tested and certified to Military and Industrial Standards such as the MIL-STD-810, MIL-STD-461, MIL-S-901, CE, UL, FCC, and many others. Designed, manufactured, assembled, and supported in the United States!

Request Pricing

14 Slot Backplane

HDB8259

Dimensions
16.4" (41.7 cm) x 12.9" (32.8 cm)
HDB8259
PCIe Gen3 x16: 4
PCIe Gen3 x8: 10
SATA/600: 6
USB 3.0: 2
USB 2.0: 4
Form Factor: HDEC



Download Datasheet

4 Slot Backplane (4 segments)

HDB8237

Dimensions

16.4" (41.7 cm) x 12.9" (32.8 cm)
HDB8237
PCIe Gen3 x16: 4
SATA/600: 6 (per segment)
USB 3.0: 2 (per segment)
USB 2.0: 4 (per segment)
Form Factor: HDEC



Download Datasheet

5 Slot Backplane

HDB8236

Dimensions

7.9" (20.1 cm) x 12.9" (32.8 cm)
HDB8236
PCIe Gen3 x16: 4
PCIe Gen3 x8: 1
SATA/600: 4
USB 3.0: 2
Form Factor: HDEC



Download Datasheet

18 Slot Backplane

HDB8231

Dimensions

16.4" (41.7 cm) x 12.9" (32.8 cm)
HDB8231
PCIe Gen3 x8: 2
PCIe Gen3 x4: 16
SATA/600: 6
USB 3.0: 2
USB 2.0: 4
Form Factor: HDEC



Download Datasheet

8 Slot Backplane

HDB8228

Dimensions

12.3" (31.2 cm) x 12.9" (32.8 cm)
HDB8228
PCIe Gen3 x16: 4
PCIe Gen3 x4: 4
SATA/600: 6
USB 3.0: 2
USB 2.0: 4
Form Factor: HDEC



Download Datasheet

4 Slot Backplane

HDB8227

Dimensions

14.6" (37.1 cm) x 3.3" (8.4 cm)
HDB8227
PCIe Gen3 x16: 4
SATA/600: 5
USB 3.0: 2
Form Factor: HDEC



Download Datasheet

4 Slot Backplane

BPC8219

Dimensions
13" (33.2 cm) x 3.3" (8.4 cm)
BPC8219-1
PCIe Gen2 x16: 3
PCIe Gen2 x4: 1
SATA/300: 2
GbE LAN: 1
USB 2.0: 4
Form Factor: PICMG 1.3



Download Datasheet

13 Slot Backplane

BPG8194

Dimensions
16.4" (14.65 cm) x 12.9" (32.8 cm)
BPG8194
PCIe Gen3 x16: 8
PCIe Gen3 x4: 5
SATA/300: 2
GbE LAN: 2
USB 2.0: 4
Form Factor: PICMG 1.3



Download Datasheet

12 Slot Backplane

BPG8155

Dimensions
12.3" (31.2 cm) x 12.9" (32.8 cm)
BPG8155
PCIe Gen3 x16: 2
PCIe Gen3 x8: 3
PCIe Gen3 x4: Up to 7
USB 2.0: 4
SATA/300: 2
GbE LAN: 1
Form Factor: PICMG 1.3



Download Datasheet

5 Slot Backplane

BPX8087

Dimensions
12.9" (33.8 cm) x 3.3" (8.4 cm)
BPX8087
PCI-X 64 bit/66Mhz: 4
PCIe Gen3 x4: 1
USB 2.0: 4
Form Factor: PICMG 1.3



Download Datasheet

18 Slot Backplane

BPG8032

Dimensions
16.4" (41.65 cm) x 12.9" (32.8 cm)
BPG8032
PCIe Gen3 x16: 17
PCIe Gen3 x4: 1
GbE LAN: 2
USB 2.0: 2
Form Factor: PICMG 1.3



Download Datasheet

10 Slot Backplane

BPG7087

Dimensions

12.3" (31.2 cm) x 12.9" (32.8 cm)
BPG7087
PCIe Gen2 x16: 4
PCIe Gen3 x4: 6
GbE LAN: 1
USB 2.0: 2
Form Factor: PICMG 1.3



Download Datasheet

18 Slot Backplane

BPX6806

Dimensions
16.4" (41.65 cm) x 11.9" (30.23 cm)
BPX6806
PCIe Gen1 x8: 4
PCIe Gen1 x4: 12
PCIe Gen2 x4: 2
GbE LAN: 2
USB 2.0: 2
Form Factor: PICMG 1.3



Download Datasheet

Slot Backplane

BPG8150

Dimensions

7.9" (20.1 cm) x 12.9" (32.8 cm)

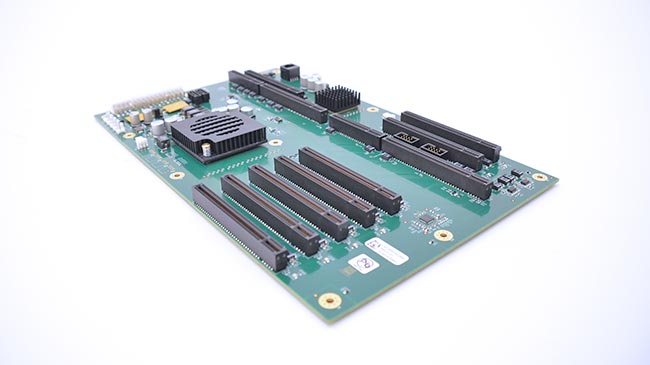

BPG8150 Product Listing
PCIe Gen3 x16: 4
PCIe Gen3 x8: 2
PCIe Gen3 x8: 1
PCI-X 64bit/100Mhz: 2
USB 2.0: 2
GbE LAN: 1
Form Factor: PICMG 1.3



Download Datasheet

Slot Backplane

BPG6714

Dimensions

6.8" (17.27 cm) x 12.9" (32.8 cm)
BPG6714
PCIe Gen3 x16: 1
PCIe Gen2 x4: 1
PCI-X 64bit/133Mhz: 1
PCI-X 64bit/100Mhz: 2
USB 2.0: 2
GbE LAN: 1
Form Factor: PICMG 1.3



Download Datasheet

11 Slot Backplane

BPG6615

Dimensions

12.3" (31.2 cm) x 12.9" (32.8 cm)
BPG6615
PCIe Gen1 x16: 1
PCIe Gen1 x4: 4
PCI-X 64bit/133Mhz: 2
PCI-X 64bit/100Mhz: 4
USB 2.0: 2
GbE LAN: 2
Form Factor: PICMG 1.3



Download Datasheet

12 Slot Backplane

BPG6600

Dimensions

12.3" (31.2 cm) x 12.9" (32.8 cm)
BPG6600
PCIe Gen3 x16: 1
PCIe Gen2 x4: 1
PCI-X 64bit/100Mhz: 2
PCI-X 64bit/66Mhz: 4
PCI-X 32bit/33Mhz: 4
GbE LAN: 2
USB 2.0: 2
Form Factor: PICMG 1.3



Download Datasheet
