1U Rugged Servers Hero Banner

1U Rugged Servers

The Lightest & Most Powerful

When you need lightweight, high-performance rugged computing in a 1U server.

Request Pricing

Intel Inside®

Dual Xeon® SP
Gold & Silver CPUs

DDR4-2933

Six-Channel ECC RDIMMs

19"

Chassis Depth

12.5 lbs.

Fully Configured

Light as a Feather

Okay, maybe not that light but we got it down to 12.5 lbs! That's SWaP-optimization at its finest. Also, it's the lightest 1U rugged server you'll find on the market today.

TRC1002 Front Angle

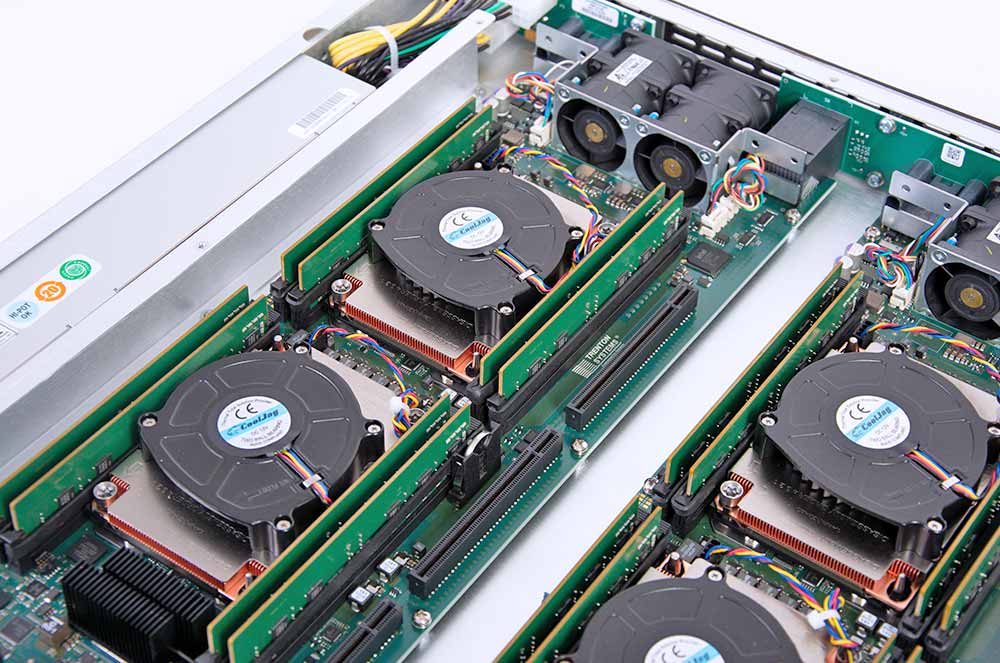

Processor Board2

Unleash extreme performance with the 2-in-1U rugged server. That's right. Two dual-CPU processor boards inside a short-depth, light, 1U rugged chassis. Our favorite kind of déjà vu.

Processor Board Squared TRC1001

PCIe Slots & Storage

Our 1U-fits-all solution holds the same relentless CPU power but also boasts ample storage options and up to two PCIe Gen3 slots.

You've read that right. Performance, storage, option cards. Packed into a 1U server. Boundaries excluded!

Add even more PCIe slots to your ruggedized computer with our PCIe Expansion Kit.

See Our PCIe Expansion System

MBS1002

Jack of All Trades

Mix & match our 1U rugged servers & workstations into one system. Perfect if you need performance and storage options.

Take a look at our 1U Rugged Workstations for for more info and detailed tech specs.

1U Rugged Servers & Workstations in one

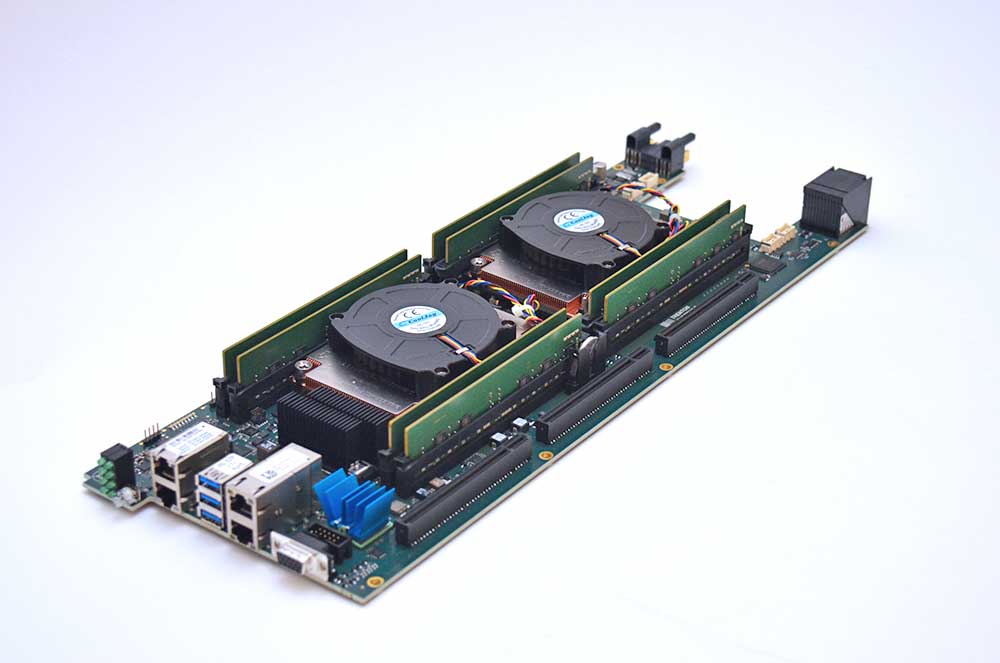

Dual Intel® Xeon® SP CPUs

Achieve exceptional performance with Intel® Xeon® Scalable Performance Silver & Gold Series processors. Up to 3.9 GHz clock rate, 22 cores (44 threads), 30.25 MB L3 cache, and 25W - 125W TDP.

MSL8256 LR

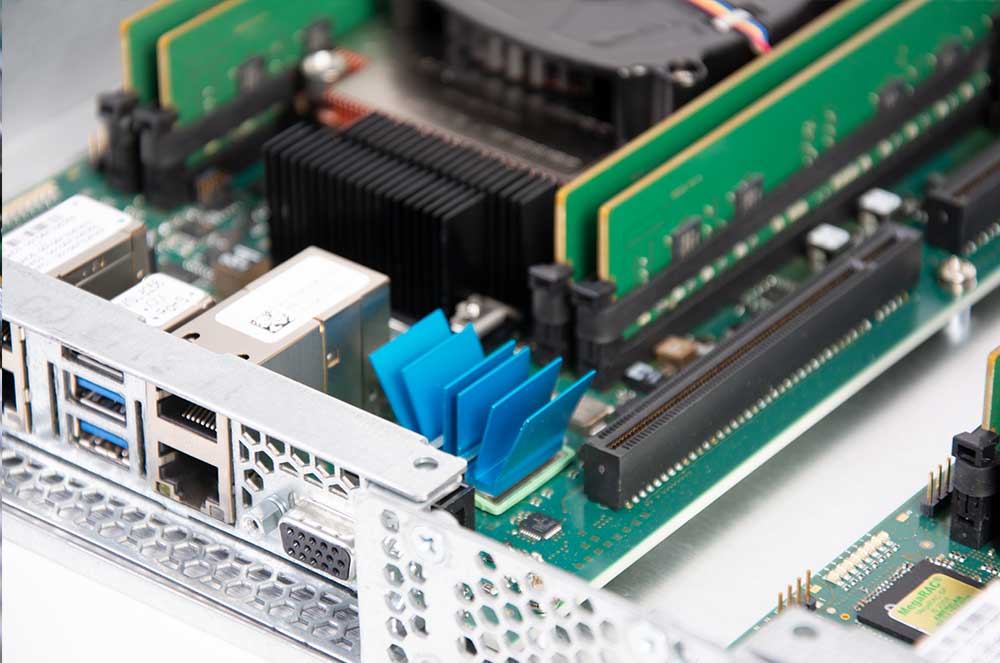

Unforgettable Memory

Maximize signal integrity with 8 carefully optimized ECC RDIMMs across 6 channels and up to 1.5TB DDR4-2933 memory.

Basically the best server-class RAM in a 1U rugged chassis.

1U Unforgettable Memory Default

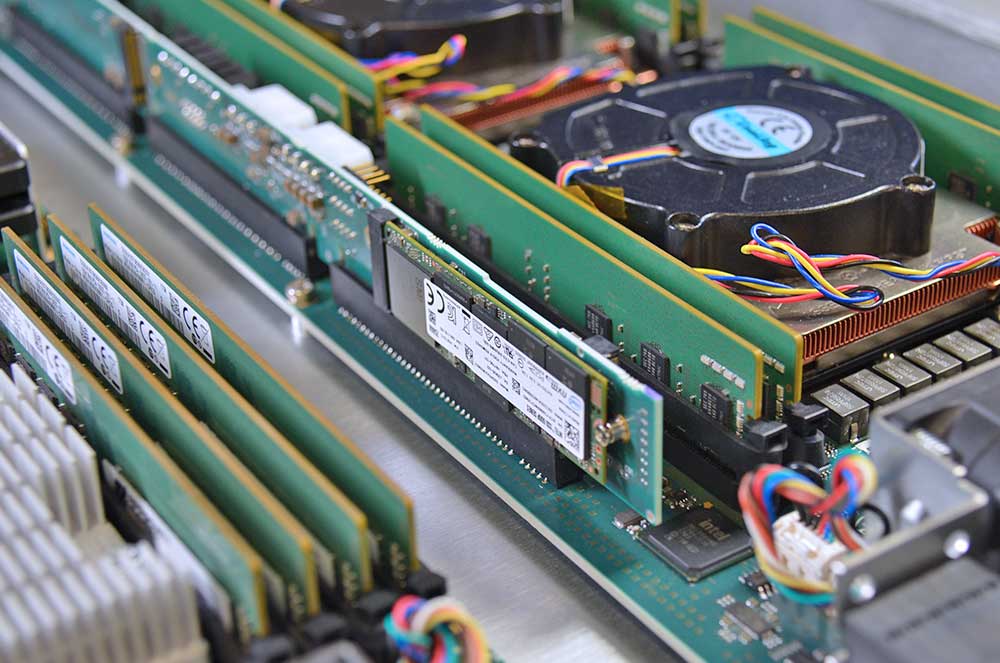

Storage SATAsfied

Exceed your storage specs with an optional riser card carrying up to 4 M.2s per processor board.

Depending on which rugged chassis you choose, we can expand your storage needs with an additional two front-access / hot-swap SATA 6 Gb/s drives.

Storage SATAsfied 1U M.2 Riser Card

Power. Full.

1200W removable and MTTR-optimized power supply offers you versatility and plenty of juice to run the most demanding applications.

TRC1001 Rear IO 2

I/Options

  • 2 - 10GbE LAN Ports
  • 2 - 1GbE LAN Ports (1 LAN Port with IPMI)
  • 3 - USB 3.1 Gen 1 Ports
  • 1 - VGA Port

Standard I/O interface can be customized to fit your specific program or application.

TRC1001 Rear IO

Configure Your Rugged 1U Server

Tell us what you need

Components & Downloads

Processor Boards CPU Memory Storage
MSL8256 Dual Intel® Xeon® Scalable Performance Up to 1.5TB DDR4-2933 across 8 ECC RDIMMs (6 channels) Up to four optional M.2 drives
MBK8257 7th Gen Intel® Core™ i3, i5, i7 or Intel® Xeon® E3 v6 Up to 64GB DDR4-2400 across 4 ECC DIMMs (2 Channels) Up to two internal SATA 6 Gb/s drives & up to four optional M.2 drives

Rugged Chassis Power Supply Drives Size (W x H x D)
TRC1001
H
olds 2 processor boards
1200W Removable All drives provided by the processor board(s) 19" x 1.75" x 19"
48.3 cm x 4.45 cm x 48.3 cm
TRC1002 1200W Removable One 3.5" drive bay holding two front-access/hot-swap SATA 6 Gb/s drives 19" x 1.75" x 19"
48.3 cm x 4.45 cm x 48.3 cm

PCIe Expansion Kit Description
PED8234 Add up to 18 PCIe slots per x16 slot in any system with either a 1m or 3m cable.
