4U Rugged Servers

Our Most Popular Choice

Designed to battle the toughest environments.

Request Pricing

Intel Inside®

Dual Xeon® SP
Gold & Silver CPUs

DDR4-2933

Six-Channel ECC RDIMMs

18" - 26"

Chassis Depth

Certified to

Military & Industrial Standards

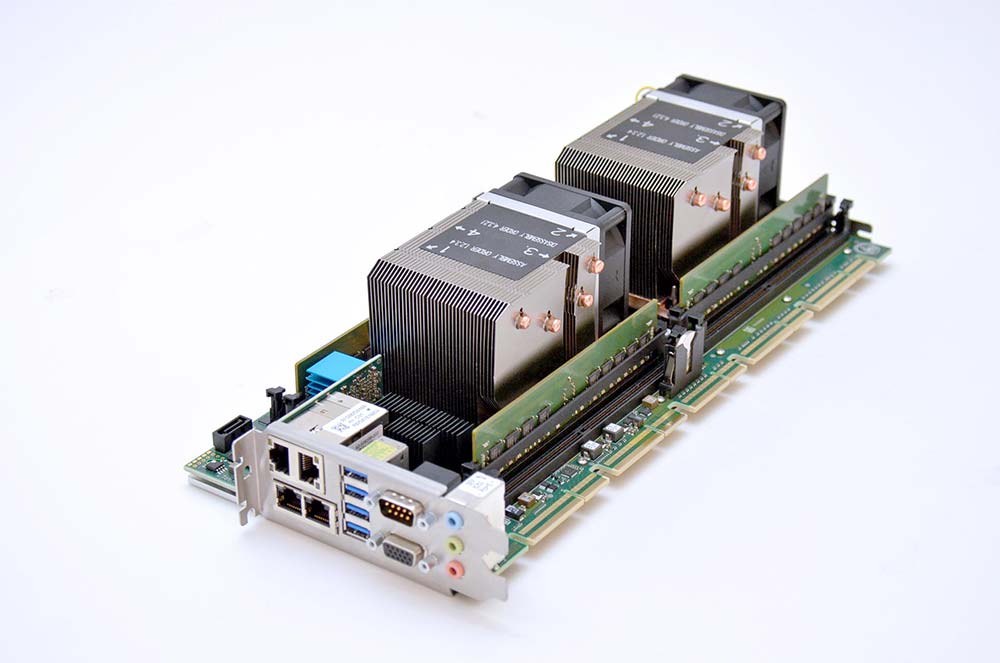

Dual Intel® Xeon® SP CPUs

Achieve exceptional performance with Intel® Xeon® Scalable Performance Silver & Gold Series processors. Up to 3.9 GHz clock rate, 22 cores (44 threads), 30.25 MB L3 cache, and 25W - 125W TDP.

4U Rugged Servers Dual Intel Xeon SP CPUs

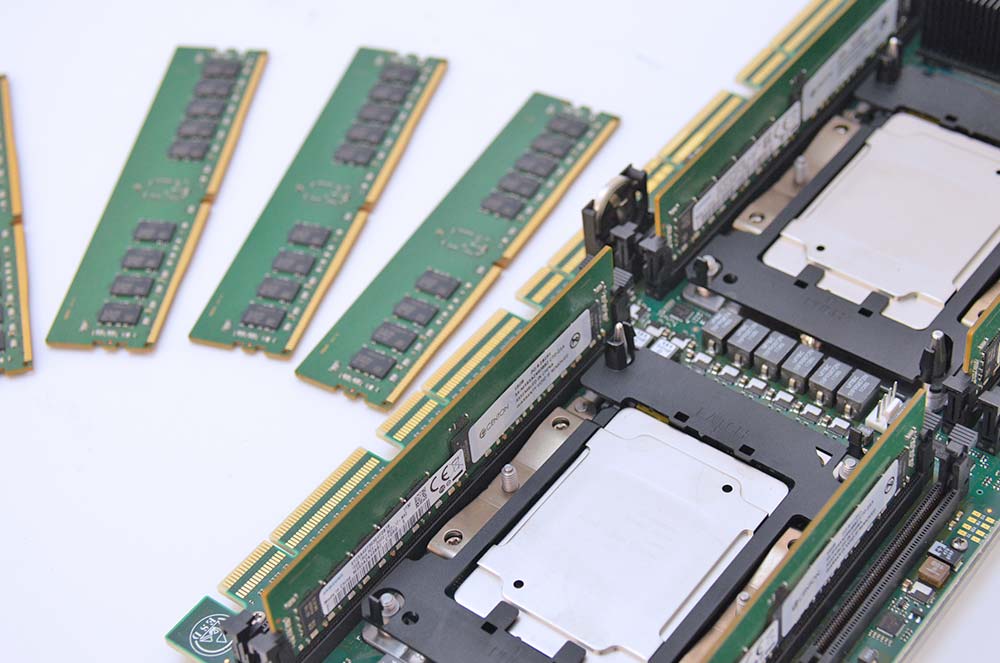

Unforgettable Memory

Maximize signal integrity with 8 or 12 carefully optimized ECC RDIMMs across 6 channels and up to 1.5TB DDR4-2933 memory.

Basically the best server-class RAM in a 4U rugged chassis.

4U Rugged Servers Unforgettable Memory

Storage SATAsfied

Exceed your storage specs with up to two 5.25” drive bays supporting up to 16 SATA 6 Gb/s drives and one SlimLine Optical drive.

4U Rugged Servers Storage SATAsfied 2

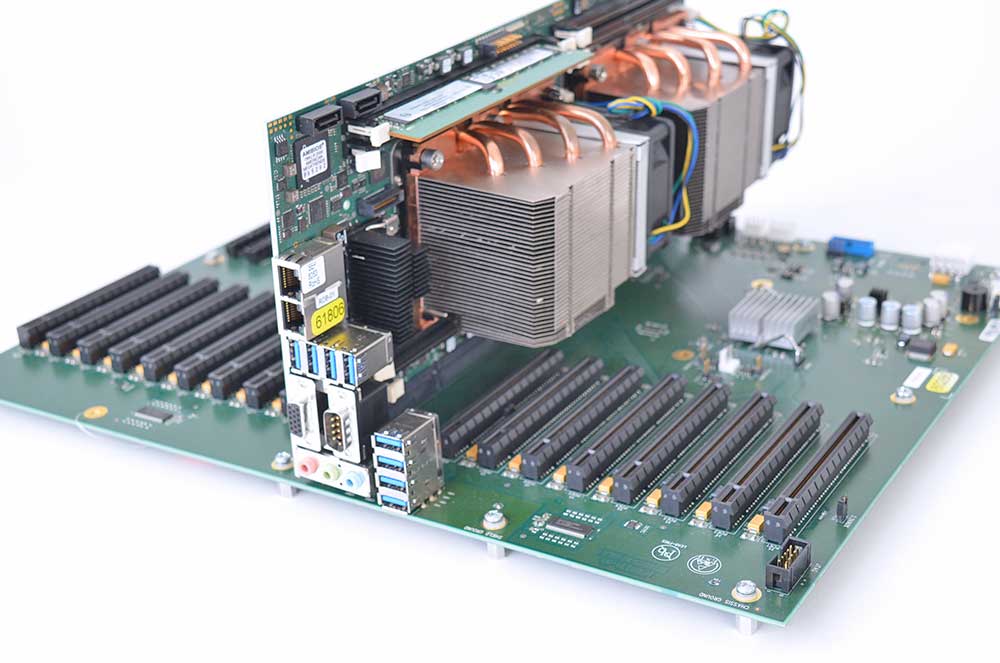

Lots of Slots

Up to 18 PCIe Gen3 slots in a 4U rugged server offering the most application versatility and scalability.

Add even more PCIe slots to your ruggedized computer with our PCIe Expansion Kit.

See Our PCIe Expansion System

4U Rugged Servers Lots of Slots 3

Power. Full.

860W fixed (AC) or 850W (DC) power supply to provide enough juice to run the most demanding application requirements with ease.

If your application demands more, we've got plenty of options to suit your needs.

Power. Full. Default

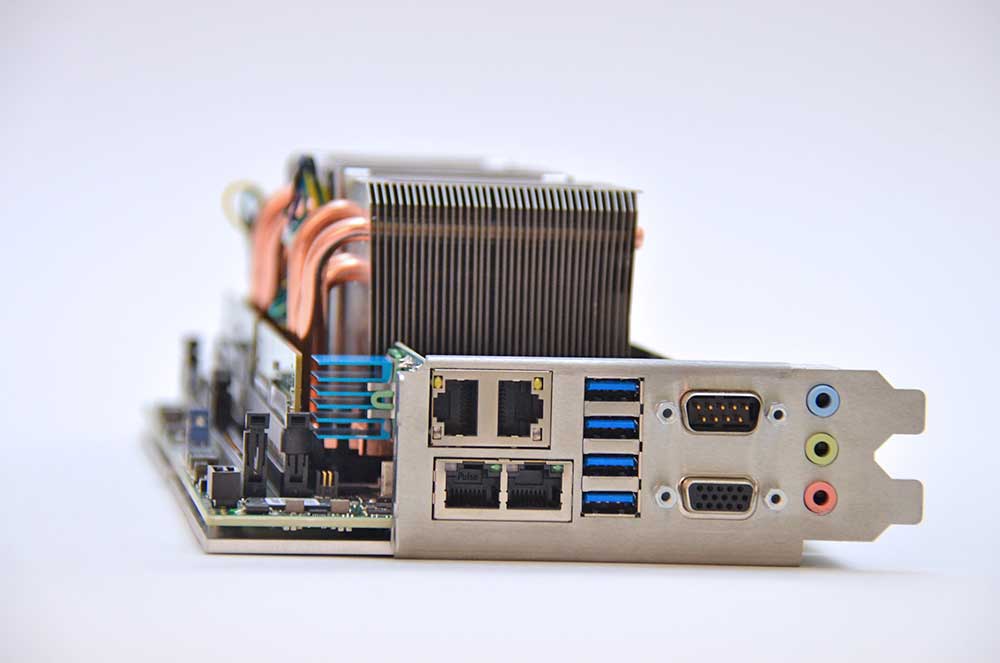

I/Options

  • 2 - 1GbE LAN Ports (1 LAN Port with IPMI)
  • 2 - 10GbE LAN Ports
  • 4 - USB 3.1 Gen 1 Ports
  • 1 - VGA Port
  • 1 - RS-232 Serial Port
  • Line In/Line Out/Mic 3.5mm Jacks

Our standard I/O interface can be customized to fit your specific program or application.

Server IOptions

Configure Your Rugged 4U Server

Tell us what you need

Components & Downloads

Processor Boards CPU Memory Ports & Headers
SSP8268 Dual Intel® Xeon® Scalable Performance Up to 1.5TB DDR4-2933 across 12 ECC RDIMMs (6 channels) 7 - 1GbE LAN Ports (1 LAN Port with IPMI)
6 - SATA 6G Ports
10 - USB 3.1 Gen 1 Ports (6 ports + 4 via 2 USB headers)
1 - VGA Port
1 - RS-232 Serial Port
2 - U.2 Ports
SEP8253 Dual Intel® Xeon® Scalable Performance Up to 1.5TB DDR4-2933 across 8 ECC RDIMMs (6 channels) 2 - 1GbE LAN Ports (1 LAN Port with IPMI)
2 - 10 GbE LAN Ports
4 - USB 3.1 Gen 1 Ports
1 - SATA Header
1 - VGA Port
1 - RS-232 Serial Port

Backplanes PCIe Ports & Headers
HDB8228 8 Slots 4 PCIe Gen3 x16
4 PCIe Gen3 x4
6 - SATA/600 headers
2 - USB 3.0 headers
4 - USB 2.0 ports
HDB8259* 14 Slots 4 PCIe Gen3 x16
10 PCIe Gen3 x8
4 - USB 3.1 Gen 1 Ports (via 2 USB headers)
4 - USB 2.0 ports
6 - SATA/600 headers
HDB8231* 18 Slots 2 PCIe Gen3 x8
16 PCIe Gen3 x4
4 - USB 3.1 Gen 1 Ports (via 2 USB headers)
4 - USB 2.0 ports
6 - SATA/600 headers

Rugged Chassis Power Supply Drives Size (W x H x D)
THS4086 1200W (AC) redundant or 850W (DC) Up to three 3.5” drive bays in the front supporting up to 9 SATA 6 Gb/s drives and one SlimLine Optical drive 19" x 7" x 16.5"
48.3 cm x 17.8 cm x 41.9 cm
THS4095
*Large format backplanes
1200W fixed Two 5.25” drive bays supporting up to 16 SATA 6 Gb/s drives and one SlimLine Optical drive 19" x 7" x 26"
48.3 cm x 17.8 cm x 66 cm
TRS4019 875W Redundant, 200-240V AC Up to 72 front-access SATA 6 Gb/s or SAS 12 Gb/s drives via 24 hot-swap 3.5" drive bays 19" x 7" x 29"
48.3 cm x 17.8 cm x 73.7 cm

PCIe Expansion Kit Description
PED8234 Add up to 18 PCIe slots per x16 slot in any system with either a 1m or 3m cable.
