5U Rugged Storage Systems

48 Fast & Reliable SSDs

All the storage you need & up to 18 PCIe Slots!

Request Pricing

Intel Inside®

Dual Xeon® SP
Gold & Silver, Core™ or Xeon® E3 v6 CPUs

DDR4-2933

6 Channel ECC RDIMMs

24.5"

Chassis Depth

48 SSD/HDD

Front-Access / Hot-Swap Drives

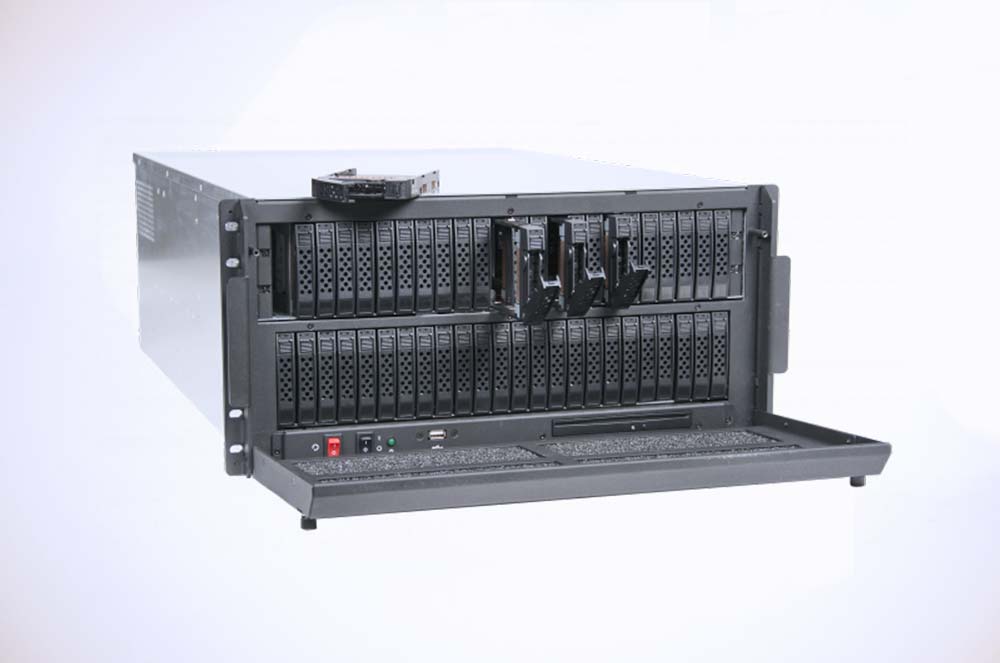

48 Front-Facing Drives

Exceptional performance with the latest hot-swap SSDs/HDDs and an additional 4 internal 2.5" drives offering a higher maximum storage capacity with full redundancy than any other 5U rugged storage server on the market today!

5U Rugged Storage 48 Front-Facing Drives

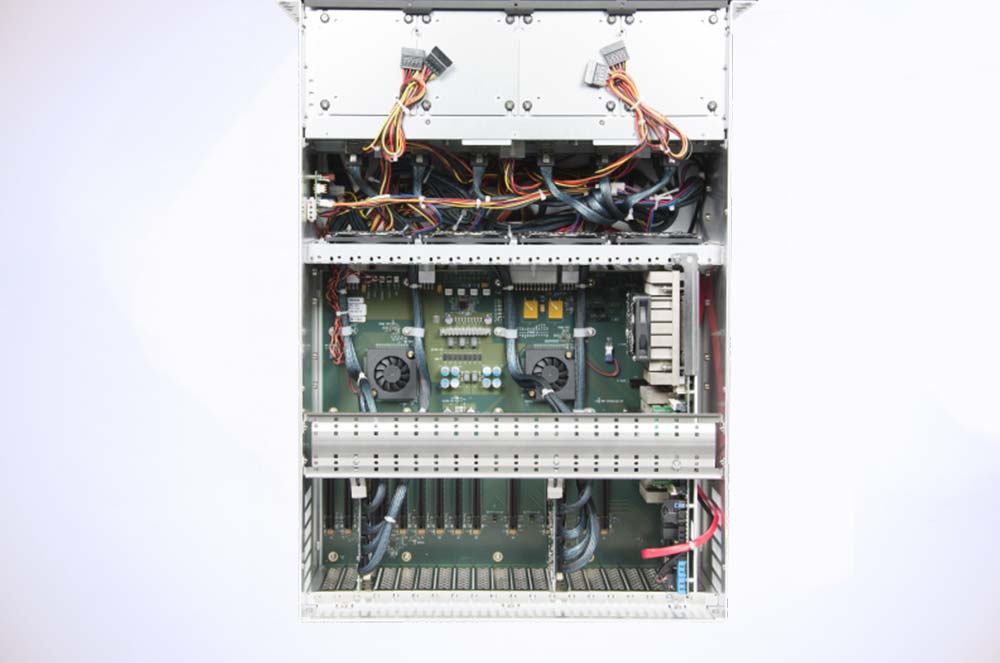

PCIe Expansion Ready

Additional PCIe expansion capability to allow you to expand beyond the already impressive 18 PCIe slots to meet your application's demands.

See Our PCIe Expansion System

5U Rugged Storage PCIe Expansion Ready

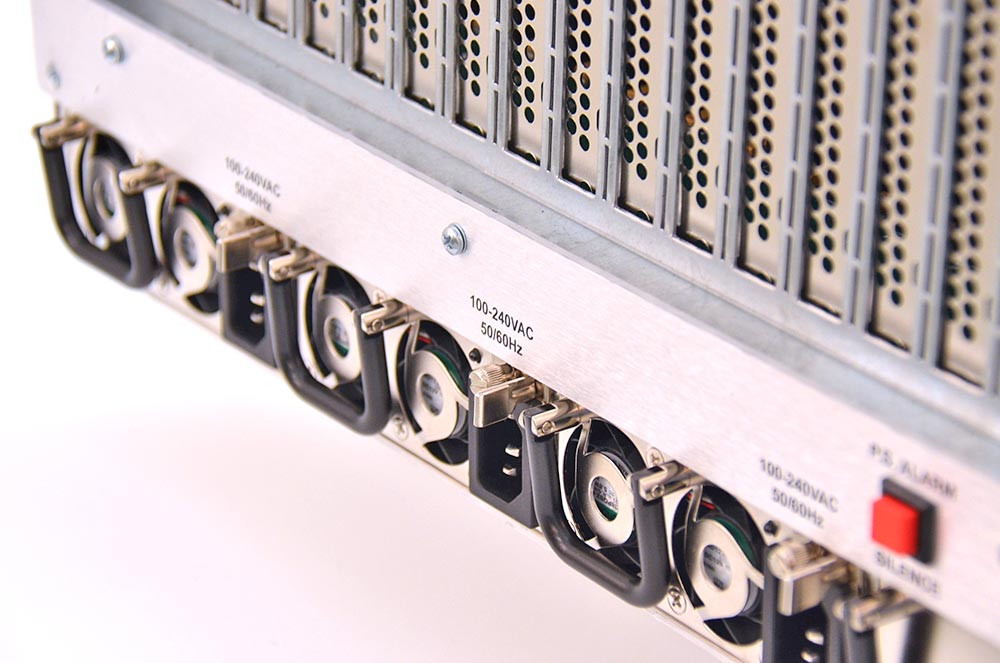

Power. Full.

1200W redundant or three separate 460W fixed power supplies. Enough juice to power all the drives and PCIe slots that will make your application run smoothly no matter what you plug into it.

Storage Server Solution Power Supply

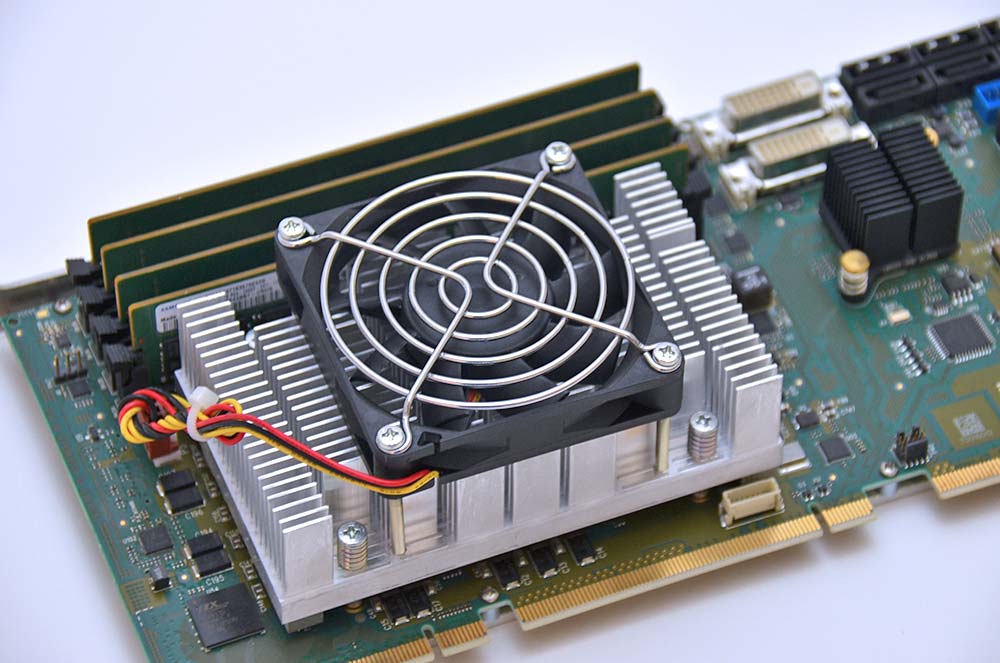

Dual Intel® Xeon® SP CPUs

Achieve exceptional performance with Intel® Xeon® Scalable Performance Silver & Gold Series processors. Up to 3.9 GHz clock rate, 22 cores (44 threads), 30.25 MB L3 cache, and 25W - 125W TDP.

Single CPU Default

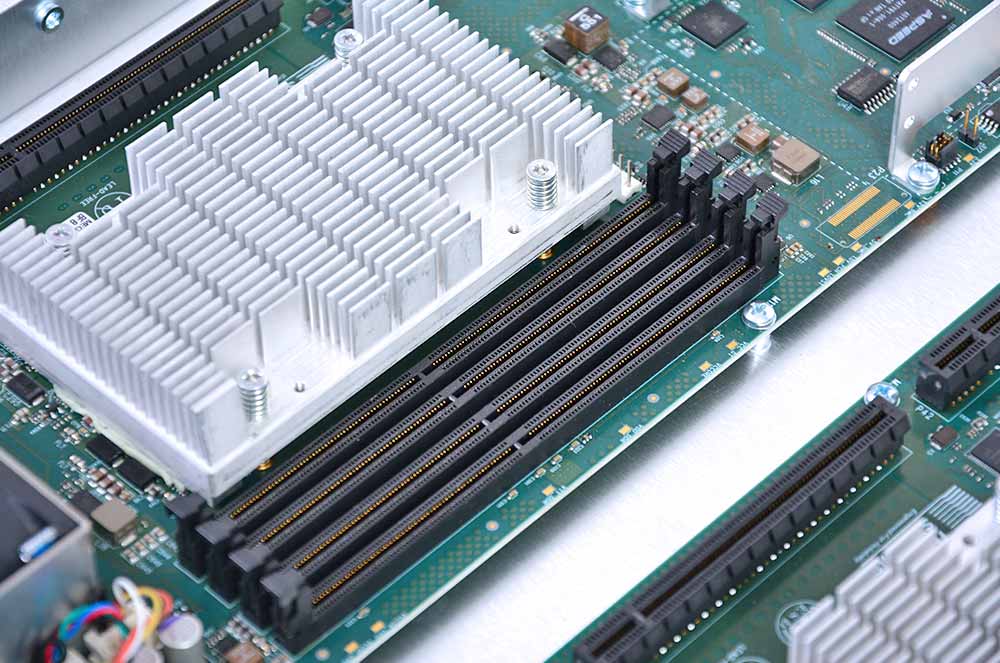

Unforgettable Memory

Maximize signal integrity with 8 carefully optimized ECC RDIMMs across 6 channels and up to 1.5TB DDR4-2933 memory.

Basically the best server-class RAM in a 5U rugged chassis.

Storage Server Memory

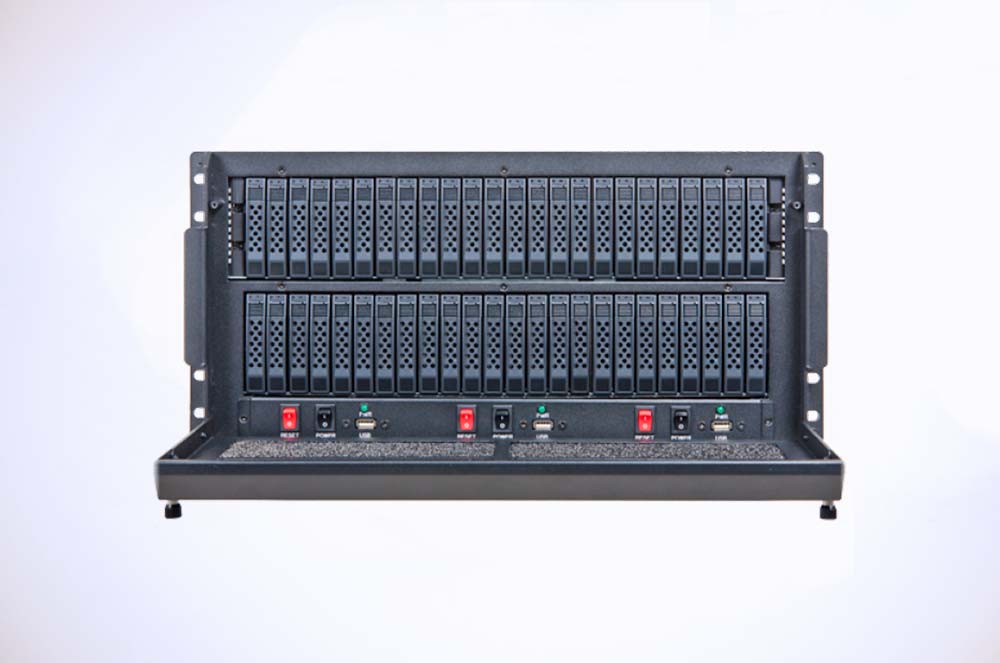

No Tools Required

Remove drives individually with our innovative magazine design. Fastest MTTR (mean time to replace) using your bare hands.

5U Rugged Servers No Tools Required

Configure Your 5U Rugged Storage Server

Tell us what you need

Components & Downloads

Processor Board Form Factor CPU Memory
TKL8255 PICMG 1.3 7th Gen Intel® Core™ i3, i5, i7 or Intel® Xeon® E3 v6 Up to 64GB DDR4-2400 across 4 ECC DIMMs (2 Channels)
SEP8253 HDEC Dual Intel® Xeon® Scalable Performance Up to 1.5TB DDR4-2933 across 8 ECC RDIMMs (6 channels)

PCIe Backplane PCIe Ports & Headers
BPG8194 13 Slots 8 PCIe Gen3 x16
5 PCIe Gen3 x4
4 USB 2.0 ports
1 GbE LAN ports
BPG8032 18 Slots 17 PCIe Gen2 x16
1 PCIe Gen2 x4
4 USB 2.0 ports
1 GbE LAN ports
BPX6806 18 Slots 4 PCIe Gen1 x8
12 PCIe Gen1 x4
1 PCIe Gen2 x4
1 PCIe Gen2 x4/x1
4 USB 2.0 ports
1 GbE LAN ports
HDB8259 14 Slots 4 PCIe Gen3 x16
10 PCIe Gen3 x8
4 - USB 3.1 Gen 1 Ports (via 2 USB Headers)
4 - USB 2.0 ports
6 - SATA/600 headers
HDB8231 18 Slots 2 PCIe Gen3 x8
16 PCIe Gen3 x4
4 - USB 3.1 Gen 1 Ports (via 2 USB Headers)
4 - USB 2.0 ports
6 - SATA/600 headers
HDB8228 8 Slots 4 PCIe Gen3 x16
4 PCIe Gen3 x4
4 - USB 3.1 Gen 1 Ports (via 2 USB Headers)
4 USB 2.0 ports
6 - SATA/600 headers
HDB8237 4 Slots 4 PCIe Gen3 x16 4 - USB 3.1 Gen 1 Ports (via 2 USB Headers)
6 - SATA/600 headers
HDB8227 4 Slots 3 PCIe Gen2 x16
1 PCIe Gen2 x4
4 - USB 3.1 Gen 1 Ports (via 2 USB Headers)
5 - SATA/600 Headers

Rugged Chassis Power Supply Drives Size (W x H x D)
TSS5201 1200W Mini-Redundant 48 front-access/hot-swap SSD/HDD Drives and 4 internal, fixed 2.5" 6 Gb/s SATA drives and one SlimLine Optical drive 19" x 8.75" x 24.5"
48.3 cm x 22.2 cm x 62.2 cm

PCIe Expansion Kit Description
PED8234 Add up to 18 PCIe slots per x16 slot in any system with either a 1m or 3m cable.
