4U Rugged Workstations Hero (darker)

4U Rugged Workstations

Experience True Ruggedness

With all the drives and PCIe Slots you'll need.

Request Pricing

Intel Inside®

Core™ or Xeon® CPUs

DDR4-2400

Dual-Channel ECC DIMMs

16.5" - 25.7"

Chassis Depth

Certified to

Military & Industrial Standards

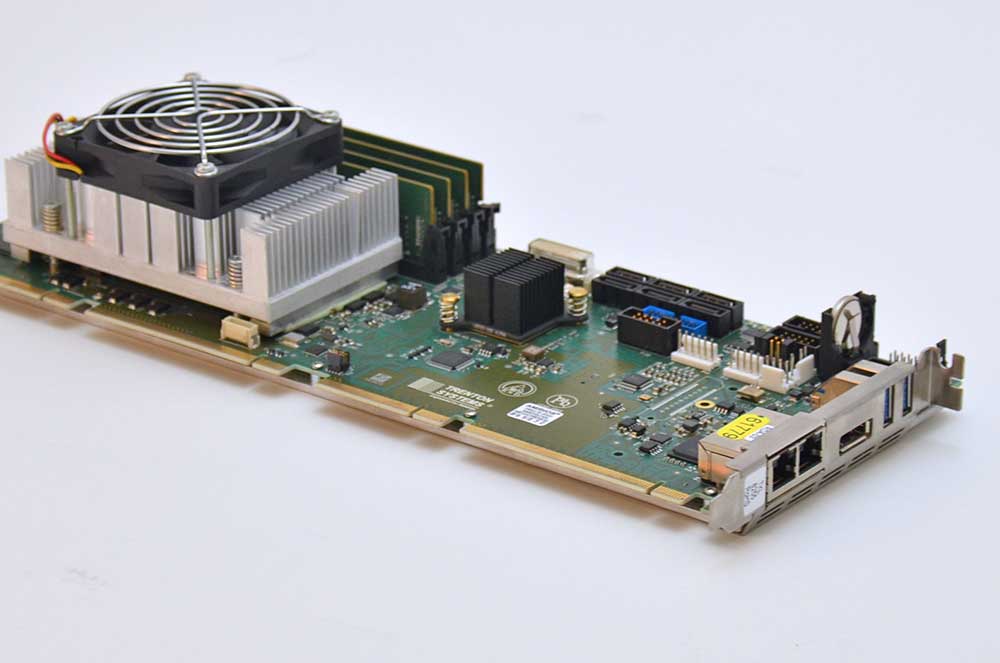

Intel® Core™ or Xeon® CPUs

Remarkable performance using 7th Gen Core™ i3, i5, i7 or Intel® Xeon® E3 v6 processors. Up to 4.2 GHz clock rate, 4 cores (8 threads), 8MB cache, and 25W - 125W TDP.

Workstations CPU Default

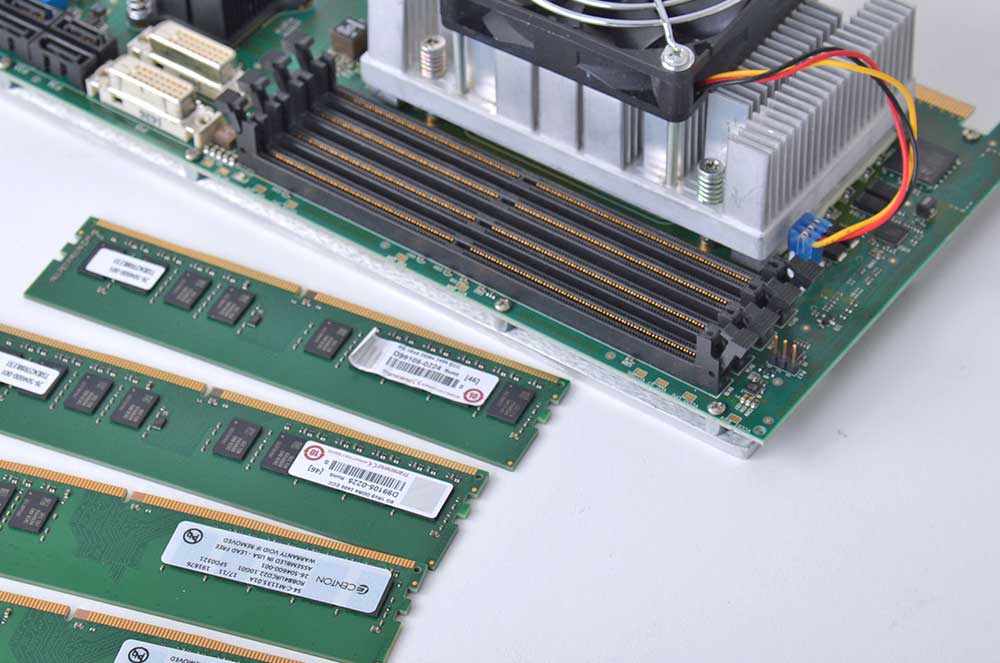

Unforgettable Memory

Maximize signal integrity with four carefully optimized ECC DIMMs across 2 channels and up to 64GB DDR4-2400 memory. Basically the best server-class RAM in a 4U rugged workstation.

Workstations Unforgettable Memory Default

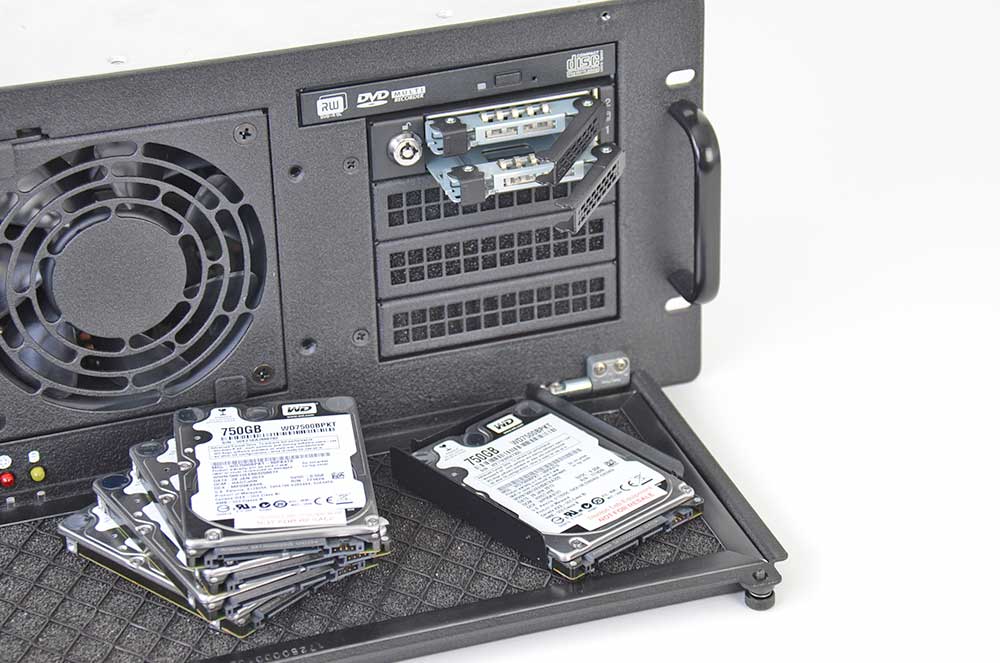

Storage SATAsfied

Exceed your storage specs with up to 12 SATA 6 Gb/s front-access/hot-swap drives and a max of two SlimLine Optical drives.

You can expand your storage needs even further with two internal SATA 6 Gb/s drives housed on the processor board.

4U Rugged Servers Storage SATAsfied 2

Lots of Slots

Up to 12 PCIe Gen3 slots with low latency and high bandwidth.

If you require more PCIe slots in our 4U rugged workstations, be sure to check out our PCIe Expansion options.

4U Workstations Lots of Slots

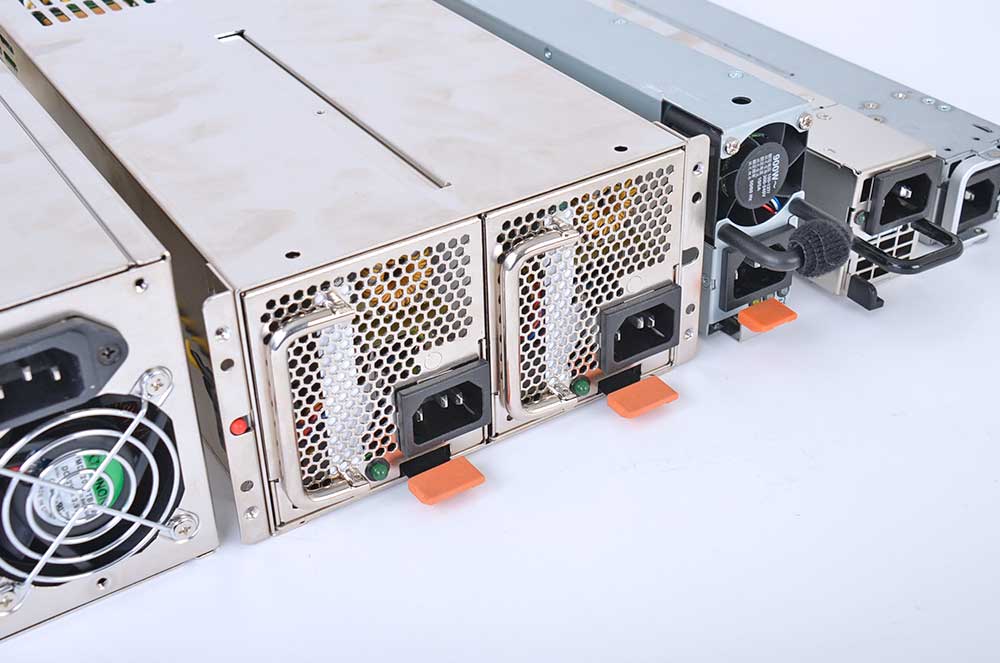

Power. Full.

Up to 1500W power supply or even two separate PSUs in one 4U workstation. Just the amount of juice you need to run the most demanding applications.

Power. Full. Default

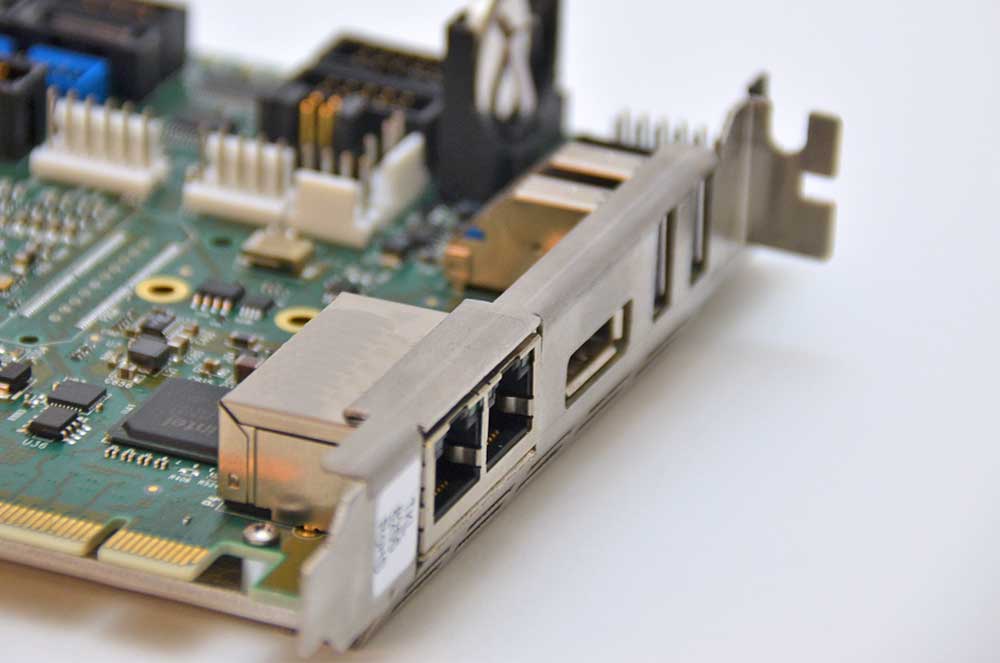

I/Options

  • 3 - 1GbE LAN Ports
  • 6 - SATA/600 Ports with RAID
  • 4 - USB 3.1 Gen 1 (2 ports + 1 header offering 2 ports)
  • 2 - DVI-D Ports
  • 1 - DisplayPort 1.3

Standard I/O interface can be customized to fit your specific program or application.

Workstations IOptions Default

Configure Your Rugged 4U Workstation

Tell us what you need

Tech Specs & Downloads

Processor Boards CPU Memory
TKL8255 7th Gen Intel® Core™ i3, i5, i7 or Intel® Xeon® E3 v6 Up to 64GB DDR4-2400 across 4 ECC DIMMs (2 Channels)

PCIe Backplanes PCIe Ports & Headers
BPG8155
2 PCIe Gen3 x16
3 PCIe Gen3 x8
6 PCIe Gen3 x4
1 PCIe Gen2 x4
4 USB 2.0
1 GbE LAN
BPG7087 4 PCIe Gen2 x16
4 PCIe Gen2 x4
1 PCIe Gen2 x4
1 PCIe Gen2 x1/x4
2 USB 2.0
1 GbE LAN
BPX6719 2 PCIe Gen2 x8
1 PCIe Gen2 x4/x1
1 PCI-X 64-bit/133MHz
2 PCI-X 64-bit/100MHz
2 USB 2.0
1 GbE LAN
BPG6714 1 PCIe Gen2 x16
1 PCIe Gen2 x4/x1
1 PCI-X 64-bit/133MHz
1 PCI-X 64-bit/100MHz
2 USB 2.0
1 GbE LAN
BPG6615 1 PCIe Gen1 x16
4 PCIe Gen1 x4
2 PCI-X 64-bit/100MHz
4 PCI-X 64-bit/66MHz
2 USB 2.0
1 GbE LAN
BPX6610 1 PCIe Gen1 x8
4 PCIe Gen1 x4
2 PCI-X 64-bit/100MHz
4 PCI-X 64-bit/66MHz
2 USB 2.0
1 GbE LAN
BPG6600 1 PCIe Gen2 x16
1 PCIe Gen2 x4/x1
2 PCI-X 64-bit/100MHz
4 PCI-X 64-bit/66MHz
4 PCI 32bit/33MHz
2 USB 2.0
1 GbE LAN

Rugged Chassis Power Supply Drives Size (W x H x D)
THS4086 1200W Fixed or 800W Redundant Four 3.5" drive bays supporting up to 12 6 Gb/s SATA drives and One SlimLine Optical Drive 19" x 7" 16.5"
48.3 cm x 17.8 cm x 41.9 cm
TRC4015 1200W Fixed or 800W Redundant Two 5.25" drive bays supporting up to 16 6 Gb/s SATA drives and One SlimLine Optical Drive 19" x 7" 25.7"
48.3 cm x 17.8 cm x 65.4 cm
TRC4007 860W Fixed or 800W Redundant Three 3.5" drive bays supporting up to nine front-access/hot-swap 6 Gb/s SATA drives and One SlimLine Optical Drive 19" x 7" x 20"
48.3 cm x 17.8 cm x 50.8 cm
TMS4702 700W Fixed Four 3.5" drive bays supporting up to 12 front-access/hot-swap 6 Gb/s SATA drives and one SlimLine Optical Drives 19" x 7" x 22"
48.3 cm x 17.8 cm x 55.9 cm
TMS4711 500W Redundant Four 3.5" drive bays supporting up to 12 6 Gb/s SATA drives and one SlimLine Optical Drive  19" x 7" x 20"
48.3 cm x 17.8 cm x 50.8 cm
