TMS4710 Military Computer Chassis.

Two separate processor boards in a MIL-STD-810G and MIL-STD-461F approved 4U chassis

Combats harsh environmental and climatic conditions with ease.

This 100% Designed & Manufactured in the USA Military Chassis withstands 40G shock and is MIL-STD-810G and MIL-STD-461F certified.
TMS4710 Military Chassis

Let Us Customize This Chassis For You

Speak To An Engineer
Military Chassis.png

There is no other rugged military chassis like it ...

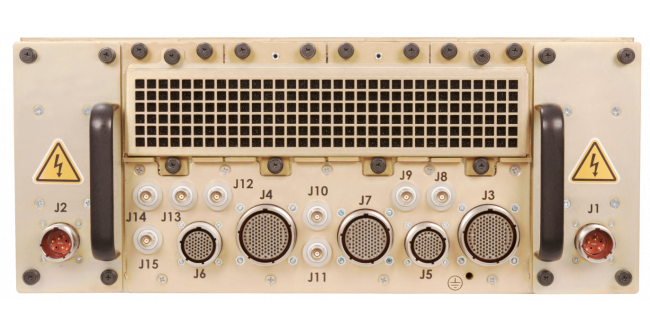

The TMS4710 is a short-depth 4U military computer chassis made for applications that require two separate computers in a 4U height and a maximum 23″ depth requirement (24.8" including rear chassis enclosure handles). Rugged yet lightweight, it tolerates a remarkable shock value of 40G with the use of MIL-DTL-38999 and MIL-STD-1553 rear I/O connectors. The TMS4710 rackmount computer chassis has two front-accessible 3.5" drives and supports two separate processor boards with either dual Xeon or single Core series CPUs with up to 4 PCIe slots per processor (8 total).

Please contact Trenton for the full MIL-STD-810G and MIL-STD-461F test reports.

All internal cabling is customized and secured to the chassis to optimize airflow and system cooling. The US-made military grade computer chassis is built to survive and comes standard with anti-corrosion coating.

Customize the TMS4710 with our wide array of standard internal components.

Single Board Computers  Backplanes



Temperature Range

-10º C to 55º C (operating) and -51º C to 71º (storage)

Humidity

5% to 95% non-condensing

Altitude

-1,000ft (304.8m) to 15,000ft (4,572m) (operating and storage)

Power Supply

Two separate removable 520W, 115-240VAC, 50-400Hz supply.
