Everything You Need to Know About PCIe 4.0

by Brett Daniel, on Mar 23, 2021 2:30:00 PM

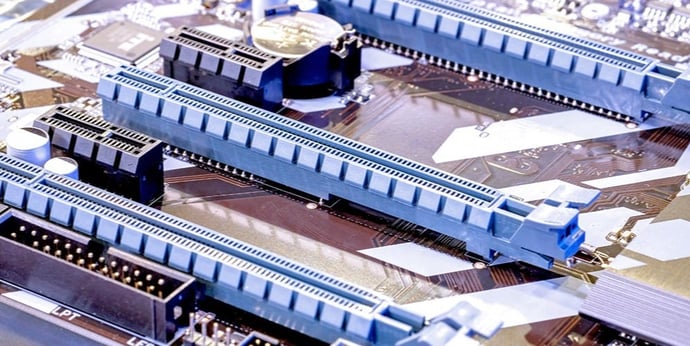

This is a photo of PCIe slots on a motherboard.

Photo: PCIe slots on a motherboard

Table of Contents

Industry adoption of PCIe 4.0 CPUs, PCIe 4.0 motherboards, PCIe SSDs, and high-powered PCIe 4.0 expansion cards is in full swing.

Board manufacturers and chipmakers have launched or are preparing to launch PCIe 4.0 motherboards and PCIe 4.0 CPUs, and with those launches come performance benefits for customers employing PCIe 4.0 expansion cards, including GPUs, RAID cards, PCIe SSDs, and more.

But what is PCIe 4.0, and how is it any better than PCIe 3.0? You might even be wondering whether upgrading to PCIe 4.0 will be right for you when the time comes for your program or application to make that leap.

In this blog post, we'll discuss PCIe 4.0, as well as its purpose, speeds, compatibilities, and whether you should consider upgrading to PCIe 4.0 when the time comes.

We'll walk you through everything you need to know, slot by slot, in this complete reference guide to PCIe 4.0.

This is a photo of a PCIe expansion kit plugged into a PCIe slot on a backplane and dual-CPU processor board combo.

Photo: A PCIe expansion kit plugged into a PCIe slot on a backplane and dual-CPU processor board combo

What is PCIe 4.0?

PCIe 4.0, also known as PCIe Gen 4, is the fourth generation of Peripheral Component Interconnect Express (PCIe) expansion bus specifications, which are developed, published, and maintained by the PCI Special Interest Group (PCI-SIG).

PCI-SIG announced the development of PCIe 4.0 in 2011 and officially released PCIe 4.0, Version 1.0, in 2017. You can download the PCIe 4.0 specification from PCI-SIG’s Specifications Library.

At 16 gigatransfers per second (GT/s), PCIe 4.0 is the fastest PCIe generation available on the market right now, and high-performance computer manufacturers are scrambling to adopt it for their customers. PCIe Gen 4’s successive generations, PCIe 5.0 (PCIe Gen 5) and PCIe 6.0 (PCIe Gen 6), are still in their preliminary stages of development.

One of the most notable features of PCIe 4.0 is its higher data transfer rate of 16 GT/s compared to PCIe 3.0. Sixteen GT/s is twice the 8 GT/s transfer rate of the previous and now-widely-adopted PCIe generation, PCIe 3.0. This doubling of transfer rate, in turn, doubles the individual bandwidths that customers can expect from their motherboards’ x1, x2, x4, x8, or x16 PCIe slots.

The delivery of the PCIe 4.0 specification to the industry is an important addition to our spec library as it delivers high performance 16GT/s data rates with flexible lane width configurations, while continuing to meet the industry’s requirements for low power.

- Al Yanes, President and Chairman of PCI-SIG, PCI-SIG Releases PCIe 4.0, Version 1.0

This is a digital, futuristic illustration of a motherboard.

Photo: PCIe allows the motherboard to interface with certain high-speed components.

What does PCIe 4.0 do?

Like other generations of PCIe, PCIe 4.0 interfaces with your computer’s motherboard to facilitate the high-speed transfer of data from graphics cards, NVMe SSDs, RAID cards, and other expansion cards. This process is realized by your motherboard’s PCIe slots, into which these expansion cards are inserted.

Whether your CPUs, PCIe slots, and expansion cards support PCIe 4.0 speeds is determined by the CPU manufacturer, motherboard manufacturer, and and expansion card manufacturer, respectively.

PCIe 4.0 expansion cards, such as this $89 ASUS Hyper M.2 x16 PCIe 4.0 x16 card, which is used for high-performance PCIe 4.0 NVMe SSDs, are inserted into PCIe slots, which may or may not be installed on a PCIe 4.0 motherboard. You can buy a PCIe 4.0 expansion card but have a motherboard with PCIe 3.0 slots, for example.

Thankfully, PCIe 4.0 is backward compatible, so you can still use PCIe 4.0 expansion cards with PCIe 3.0 motherboards. You’ll just be bottlenecked by the slower speeds of PCIe 3.0.

This is a photo of a calendar with marked dates.

Photo: PCIe 4.0 is already out. Chipmakers and board manufacturers are now implementing the new generation into their hardware.

When will PCIe 4.0 come out?

As of 2021, the PCIe 4.0 specification is public and available for download at the PCI-SIG website. You can even buy PCIe 4.0 motherboards, PCIe 4.0 CPUs, PCIe 4.0 SSDs, PCIe 4.0 GPUs, and other PCIe 4.0 expansion cards right now.

But regarding large-scale industry adoption of PCIe 4.0, many board manufacturers and chipmakers are still catching up. Every new iteration of a technology has its growing pains, and the transition from PCIe 3.0 to PCIe 4.0 is, rather excitingly, happening before us right now.

If you're looking to upgrade to PCIe Gen 4, it's important to start exploring your options now. It won't be long before PCIe Gen 4 is the industry standard and PCIe Gen 3 is a technology of the past.

This is a Canva graphic that reads "PCIe Gen 4 vs. PCIe Gen 3."

Photo: When it comes to the differences between PCIe 4.0 and PCIe 3.0, they all boil down to one major difference: data transfer rate.

What’s the difference between PCIe 4.0 and PCIe 3.0?

With each subsequent generation of PCIe, the data transfer rate doubles; therefore, the main difference between PCIe 4.0 and PCIe 3.0 is the doubling of data transfer rate. PCIe 4.0 has a 16 gigatransfers per second (GT/s) data transfer rate, while PCIe 3.0 has an 8 GT/s data transfer rate, so PCIe 4.0 is twice as fast as PCIe 3.0. This doubling of data transfer rate corresponds to per-lane slot bandwidth with each generation as well.

For PCIe 4.0, the bandwidth for a x1 slot is 1.969 GB/s; the bandwidth for a x2 slot is 3.938 GB/s; the bandwidth for a x4 slot is 7.877 GB/s; the bandwidth for a x8 slot is 15.754 GB/s; and the bandwidth for a x16 slot is 31.508 GB/s.

For PCIe 3.0, the bandwidth for a x1 slot is 0.985 GB/s; the bandwidth for a x2 slot is 1.969 GB/s; the bandwidth for a x4 slot is 3.939 GB/s; the bandwidth for a x8 slot is 7.877 GB/s; and the bandwidth for a x16 slot is 15.754 GB/s.

PCIe Speed Differences

Generation Gigatransfers Per Second (GT/s)
PCIe 3.0 8.0 GT/s
PCIe 4.0 16.0 GT/s
PCIe 5.0 32.0 GT/s
PCIe 6.0 64.0 GT.s



Table: PCIe Gen 4 has the twice the GT/s as PCIe Gen 3. Similarly, PCIe Gen 5 and PCIe Gen 6 have doubled data transfer rates as well.

PCIe 4.0 Bandwidths

x1 slot x2 slot x4 slot x8 slot x16 slot
1.969 GB/s 3.938 GB/s 7.877 GB/s 15.754 GB/s 31.508 GB/s



Table: PCIe 4.0 bandwidths per lane configuration

PCIe 3.0 Bandwidths

x1 slot x2 slot x4 slot x8 slot x16 slot
0.985 GB/s 1.969 GB/s 3.938 GB/s 7.877 GB/s 15.754 GB/s



Table: PCIe 4.0 bandwidths per lane configuration

With every PCIe 4.0 expansion card you purchase, assuming your computer has a PCIe 4.0 motherboard, you’re getting a higher (twice the) data transfer rate than you would with a PCIe 3.0 expansion card. So, essentially, your expansion cards are sending data faster and more efficiently because more data is being transferred per second, which ultimately boosts the performance of your expansion card and the activity it supports, e.g., reading and writing data from and to an PCIe 4.0 NVMe SSD.

This is a gold graphic that reads "backward compatibility."

Photo: Backward compatibility and forward compatibility are a PCIe standard.

Is PCIe 4.0 backward compatible?

PCIe 4.0 is backward compatible. It’s also forward compatible. So, you can insert PCIe 4.0 expansion cards into PCIe 3.0 slots, but your data transfer rate will be limited by the slower speeds of PCIe 3.0. Similarly, once the PCIe 5.0 interface is widely adopted, you’ll be able to insert a PCIe 4.0 expansion card into a PCIe 5.0 motherboard’s slot, but you'll be limited by the speeds of PCIe 4.0.

The simple answer is that PCIe 4.0 is both backward and forward compatible, but you’re not gaining performance benefits by using either of these features. No matter what, your PCIe 4.0 card will always be controlled by its respective speeds or the speeds of previous generations. Bear these concepts in mind as you consider upgrading to PCIe 4.0.

Here’s the bottom line: the concepts of backward and forward compatibility apply to every generation of PCIe - past, present, and future. But you’re not getting any performance benefit by using backward and forward compatibility with PCIe. It’s just a handy feature that’s there if you need it, e.g., you have a PCIe Gen 4 card but haven't upgraded your motherboard to support PCIe Gen 4.

This is a black-and-white graphic with a stopwatch that reads, "Why upgrade?"

Photo: Upgrading to PCIe 4.0 is worth it in 2021. It's becoming the industry standard for motherboard interfaces as PCIe 3.0 begins phasing out.

Is PCIe 4.0 worth the upgrade?

PCIe 4.0 is worth the upgrade, especially now, given that PCIe 4.0 motherboards and PCIe 4.0 expansion cards are increasingly becoming an industry standard as PCIe 3.0 is phased out. More compute-intensive and data-intensive applications are beginning to require better performance from GPUs and other PCIe expansion cards, and PCIe Gen 4 cuts the mustard.

AMD is the only chipmaker offering PCIe 4.0 right now, but that will change once Intel releases its PCIe 4.0 Rocket Lake Desktop CPUs, for use with Intel Z490 motherboards, on March 30, 2021.

As of March 22, 2021, though, only the AMD B550, X570, and AMD TRX40 Threadripper motherboards support PCIe 4.0.

Stay tuned for more exciting PCIe 4.0 announcements from Intel.

This is a photo of Trenton Systems motherboard with emphasis on its PCIe slots.

Photo: A Trenton Systems motherboard. We're known for incorporating lots of high-speed, latest-generation PCIe slots for our customers, providing them with plenty of expansion opportunities and horsepower for artificial intelligence (AI), machine learning (ML), signals intelligence (SIGINT), automatic testing and automatic testing equipment, and other applications.

Conclusion: Upgrade to PCIe Gen 4 with Trenton Systems

Only you can make the decision to upgrade to PCIe 4.0, and we'll help you figure out if this is the right choice for you during every step of the decision-making process.

To learn more about the ins and outs of PCIe 4.0, check out PCIe Gen 4 vs. Gen 3 Slots, Speeds. For more information on PCIe in general, take a look at our introductory PCIe blog post.

The fact of the matter is - if you're getting the performance you need from PCIe Gen 3 right now - then it's probably not quite time to upgrade to PCIe 4.0, but you should definitely start considering it soon, as PCIe 4.0 performance will become an industry standard before you know it.

Trenton Systems is currently testing PCIe 4.0 components and devices for its secure, made-in-USA computing solutions in-house to ensure that, once available, its PCIe 4.0 motherboards integrate seamlessly with customer platforms and that customers feel the least possible amount of resistance.

Trenton Systems is also here to help with any questions regarding PCIe 4.0 expansion cards, PCIe lanes and slots, PCIe backplanes and PCIe expansion kits, and other inquiries regarding our work with PCIe and how we can be of service to you as you begin considering an upgrade to PCIe 4.0.

Contact us today to learn more about our endeavors into PCIe 4.0 and how it can help your program or application remain relevant and performance-ready in the future.
